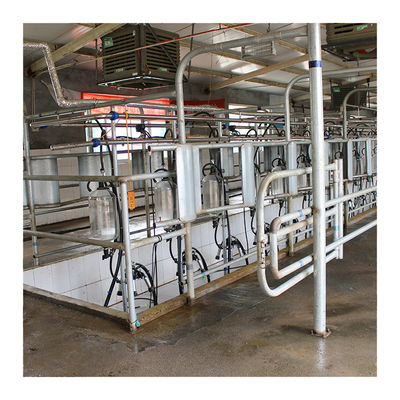

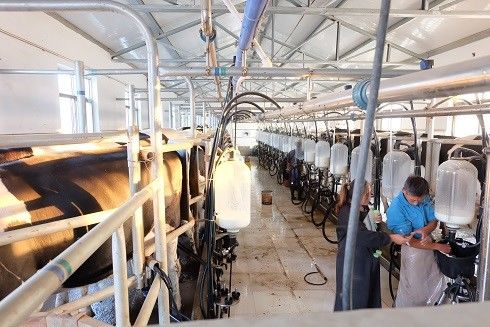

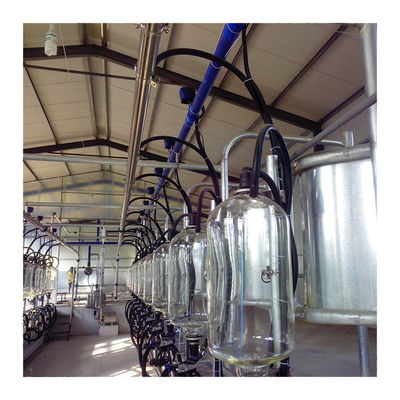

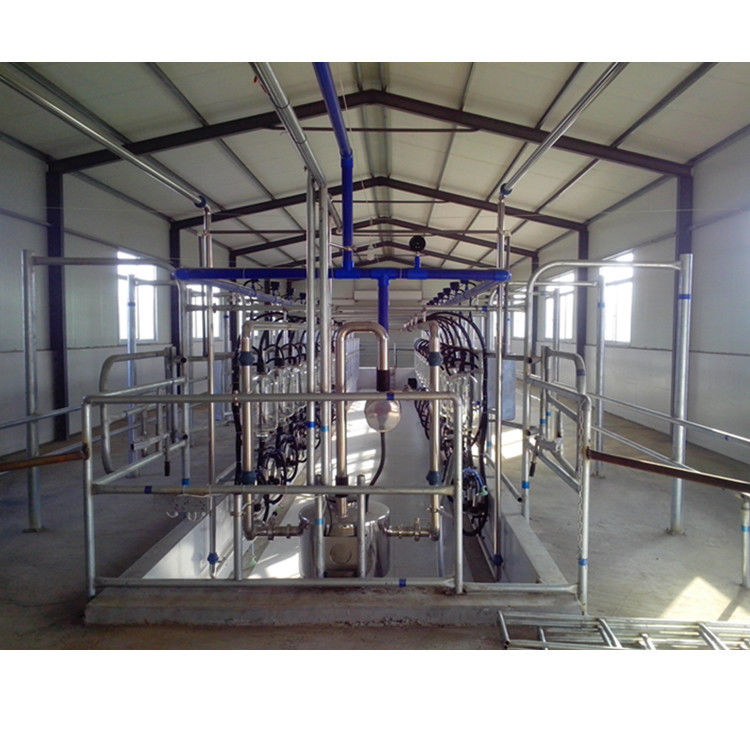

SS304 Herringbone Parlour Milking Systems Dairy Cow Equipment

Certification
China Shandong Yuejiang Machinery Co., Ltd certification
China Shandong Yuejiang Machinery Co., Ltd certification
Customer Reviews
The gasoline engine and vacuum pump type milking machine works really well. My cattle farm’s altitude is 3000 meters, but the milking machines works well, we purchased the milking machine from KLN company since 2015, stable operation and high milk efficiency, good.

—— Balinder Alerbert Romero

KLN's refrigeration tanks are very durable and have not suffered any damage so far; the entire milk cooling tank is made of SS304 very good material to ensure that our milk is cleaner and hygienic. We are now using 2 sets 6000L cooler tanks and the cooling effect is very satisfactory.

—— Ctahnnab Foprjckmn

Our sealed can is mainly used to collect loose milk from different places. The sealing effect is very good and will not leak milk. After filling 50L fresh milk, the handle will not fall. The welding is very good, and the transportation tank is very strong, this milk bucket is suitable for collecting and transporting fresh milk.

—— Daidiso Jose ander

The appearance of the pasteurizer is very beautiful, the heating temperature can be adjusted freely, and the heating time can be adjusted according to different gears, I like this design, it is very reasonable, and the stirring is uniform, the cleaning is convenient and thorough, I am satisfied with the pasteurization machine.

—— Meooh Hindyadi

I'm Online Chat Now

SS304 Herringbone Parlour Milking Systems Dairy Cow Equipment

SS304 Herringbone Parlour Milking Systems Dairy Cow Equipment
SS304 Herringbone Parlour Milking Systems Dairy Cow Equipment
SS304 Herringbone Parlour Milking Systems Dairy Cow Equipment SS304 Herringbone Parlour Milking Systems Dairy Cow Equipment SS304 Herringbone Parlour Milking Systems Dairy Cow Equipment SS304 Herringbone Parlour Milking Systems Dairy Cow Equipment SS304 Herringbone Parlour Milking Systems Dairy Cow Equipment SS304 Herringbone Parlour Milking Systems Dairy Cow Equipment

Large Image :  SS304 Herringbone Parlour Milking Systems Dairy Cow Equipment

Product Details:
Place of Origin: China
Brand Name: KLN
Certification: CE ISO
Model Number: 9JY
Payment & Shipping Terms:
Minimum Order Quantity: 8 stalls
Price: 900-1500 dollars/stall
Packaging Details: wooden case and carton,load in container
Delivery Time: 10-30 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 stalls/month

SS304 Herringbone Parlour Milking Systems Dairy Cow Equipment

Description
Warranty: 1 Year After-sales Service Provided: Video Technical Support
Use: COW MILKING MACHINE Type: Herringbone Milking Parlor
Application: Dairy Farm Equipment Capacity: 24-100point
High Light:

SS304 Herringbone Parlour Milking Systems

,

Dairy Herringbone Parlour Milking Systems

,

SS304 cow milking parlour

KLN automatic milker system dairy cow equipment herringbone milking parlor

KLN automatic milker system dairy cow milking equipment

Description for milking parlor:

1. Pulsation imported from Italy -Interplus

2. Liner imported from England

3. All pipeline which touch fresh milk is SS304 food grade

KLN automatic milker system dairy cow milking equipment

4. PVC pipeline is LESSO brand with very high quality in China

5. Rotary vane of vacuum pump is imported from Germany

6.Canopy frame for the milking parlor material is Hot galvanizing

KLN automatic milker system dairy cow milking equipment



Quality:

1,Automatic cleaning tank

2,Rotary vane of vacuum pump is imported from Germany

3,The material of pump and it's rotor are nodular cast iron

KLN automatic milker system dairy cow milking equipment



Parameter for the milking parlor:


       2*8 2*12 2*16 2*20      2*24
Working Vacuum 50Kpa 50Kpa 50Kpa 50Kpa
Pulsation Ratio 60/40 60/40 60/40 60/40
Frequency 60 ± 3 RPM 60 ± 3 RPM 60 ± 3 RPM 60 ± 3 RPM
Vacuum pump power 5.5 KW 2*4 KW 2*4 KW 2*5.5 KW
Vacuum pump speed 2100L/min 2*1200L/min 2*2100L/min 2*2100L/min
Milk pump speed 8T/h 20T/h 20T/h 20T/h
Milk pump power 2.2KW 4KW 4KW 4KW



SS304 Herringbone Parlour Milking Systems Dairy Cow Equipment 4

Advantage:

It can recycle the residual milk which is attached to the main pipeline. Thoroughly clean the dirt in the main pipeline especially in hot summer, which can reduce bacterial content and fresh the milk .Save water and electricity.To large extent, it reduced the loaded and unloaded trouble of cleaning the inner dirt in main pipeline.This series are mainly for adult cows to milking. Suitable for large and medium-sized farm or milk collection station to provide advanced centralized milking equipment.

KLN automatic milker system dairy cow milking equipment





Installation:

1. After the buyer received the milking system, the seller will send two engineers to the buyer’s site to guide installation, adjust the whole system and train labors within 7~10 days.

2. The buyer should bear the cost include actual expenses for the visa, round-trip tickets, insurance, accommodation and labor of engineers.

3. Tools for installation should be provided by the buyer, the seller will provide detailed tool list.

KLN automatic milker system dairy cow milking equipment

Related products:

TMR mixer

KLN automatic milker system dairy cow milking equipment

Milk cooling tank



KLN automatic milker system dairy cow milking equipment

Package and shipping:

1. Every order should use a WHOLE container to put goods, as the milking parlor have too many parts.

2. A milk cooling tank is good for you to buy along with the milking parlor together in order to save installation fee for you.

3. After you received all parts for milking parlor, pay attention to put all parts into one room to avoid missing.

KLN automatic milker system dairy cow milking equipment

Technical support:

Zibo Yuejiang Machinery Co., LTD started in 1997, 17 years experience makes us the second largest factory in Shandong Province.We get good reputation and build our own brand KLN.

We have experienced sales and technical teams to provide best service for you!

KLN automatic milker system dairy cow milking equipment



Foreign trade and exhibition:

At least 3 exhibitions every year in Canton fair ,Russia, India, Germany and so on.....We have a lot of experience in installing milking system .

KLN automatic milker system dairy cow milking equipment
