Product Details:
|
| Warranty: | One Year | Use: | Milking On Dairy Farm,Farming Milking |
|---|---|---|---|
| Type: | Herringbone Type,Herringbone Milking Parlor | Voltage: | 220V,380V,220v/380v |
| Power(w): | 4KW | Product Name: | Herringbone Milking Parlor |
| High Light: | SS304 Herringbone Milking Hall,PVC Pipeline Herringbone Milking Hall,PVC Pipeline Parallel Milking Parlor |
||
Farm Equipment Dairy Goat Automatic Sheep Cow Herringbone Milking Parlor
Description :

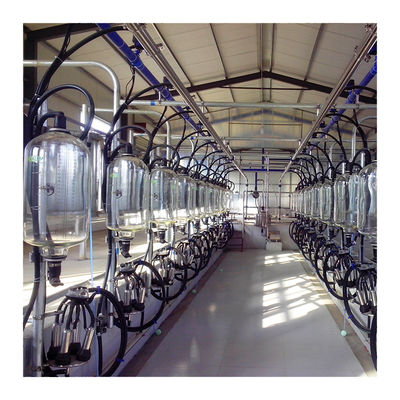

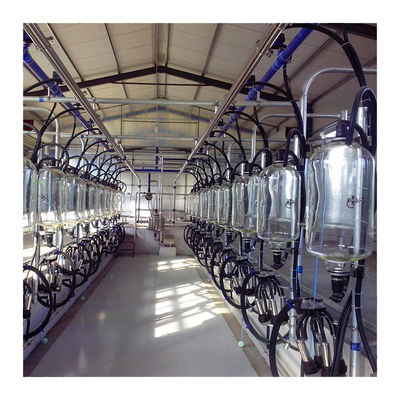

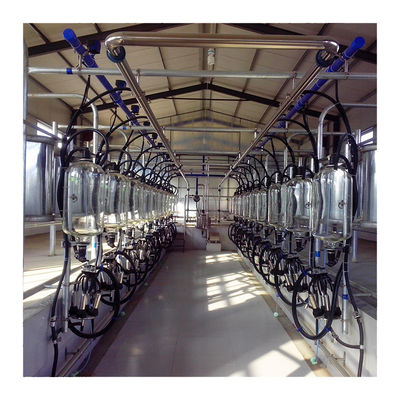

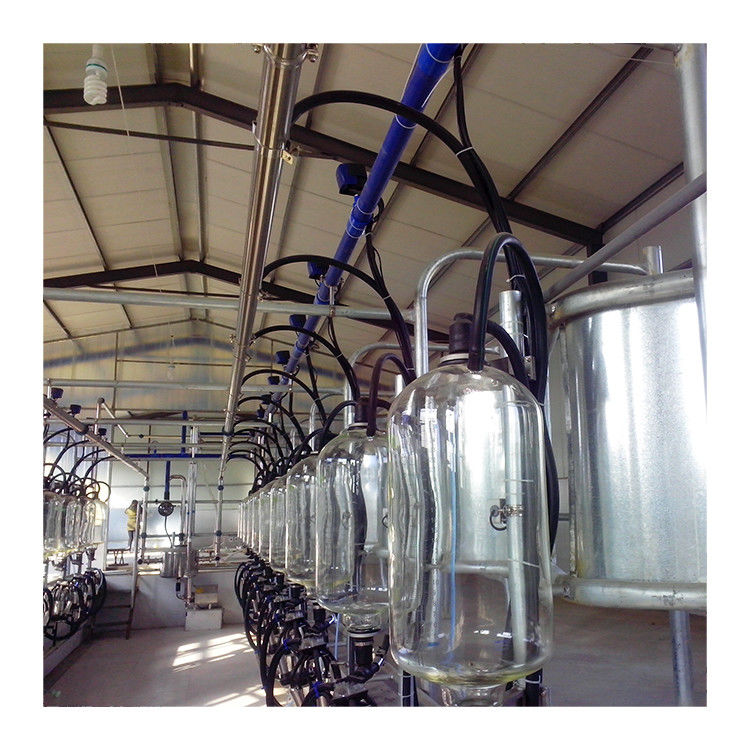

The Milking parlor / milking hall is a system that could be used to milk cows / goats in a large quantity at the same time. The stalls milking the shape of the the Herringbone parlor steel work in a variety of sizes to suit the preference of the customer.And also with accurate and proportional measurement, this parallel milking parlor become more and more popular.
| Model | 9JY-I*12 | 9JY-I*14 | 9JY-I*16 | 9JY-I*18 | 9JY-2*8 | 9JY-2*12 | 9JY-2*16 | 9JY-2*20 |
| Working Vacuum | 50KPa | 50KPa | 50KPa | 50KPa | 50KPa | 50KPa | 50KPa | 50KPa |
| Pulsation rate | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 |
| Pulse frequency | 60±3rpm | 60±3rpm | 60±3rpm | 60±3rpm | 60±3rpm | 60±3rpm | 60±3rpm | 60±3rpm |
| Pump power | 4KW | 4KW | 5.5KW | 5.5KW | 5.5KW | 5.5KW | 2*4KW | 2*5.5KW |
| Vacuum pumping speed | 1400L/min | 1400L/min | 2300L/min | 2300L/min | 2300L/min | 2300L/min | 2*1400L/min | 2*2300L/min |
| Milking pump power | 1.5kw | 1.5kw | 1.5kw | 2.2KW | 2.2KW | 2.2KW | 4KW | 4KW |
| Milking pump flow | 5T/h | 5T/h | 5T/h | 8T/h | 8T/h | 8T/h | 20T/h | 20T/h |
Feature:
1. Pulsator imported from Italy, one pulsator for two cows
2. Liner imported from England
3. All pipeline which touch fresh milk is SS304 food grade
4. PVC pipeline is LESSO brand with very high quality
5. Folding cleaning plate
6. Half automatic cleaning tank
7. Rotary vane for pump is imported from Germany with high quality
8. The material of pump and it's rotor are nodular cast iron, the performance similar with stainless steel
Delivery Issue:
1. Every order should use a WHOLE container to put goods, as the milking parlor have too many parts.
2. A milk cooling tank is good for you to buy along with the milking parlor together in order to save installation fee for you.
3. After you received All parts for milking parlor, pay attention to put all parts into a sealed room to avoid missing.
Application:
Suitable for big dairy with at least 50 milking goats or sheep.
Accessories: The milking parlor mainly includes cleaning system collection system and vacuum system.
Our company:
Our company set up a professional R&D team to continuously overcome technical difficulties. The products adopt the latest technology products and adopt the latest technology, energy-saving and environmental protection computer automatic control. The company's product line includes a milking machine,milk can,milk cooling tank,milk parlor,a range of farm products.We have more than 20 years' experience in this field, so we can assure you that our products are of high quality and the prices are reasonable.
Packing:
wooden case, carton box plastic bag
Oversea's Business:
We start foreign trade from 2011, before that, we did many preparetions.
Each year, the company will attend 2 oversea exhibitions.
Certification: We have CE and ISO9001 certification for milking machine and related farm equipment.
Exhibition: We attend exhibition every year in Russia, India, Germany, Indonesia etc.
