Product Details:
|
| Condition: | New | Use: | Cow And Goat Milking |
|---|---|---|---|
| Voltage: | 220v/380v | Power(w): | 5.5kw |
| Application: | Dairy Farm | Material: | Stainless Steel |
| High Light: | Vacuum Pump Sheep Milking Parlour,Dairy Farm Sheep Milking Parlour,Vacuum Pump milking parlour machine |
||

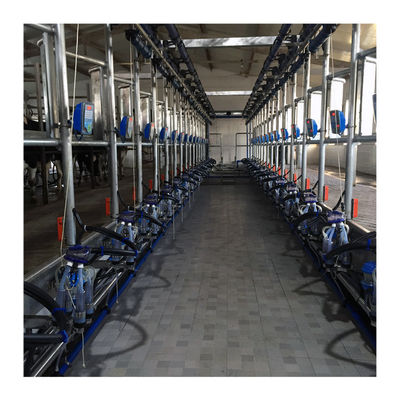

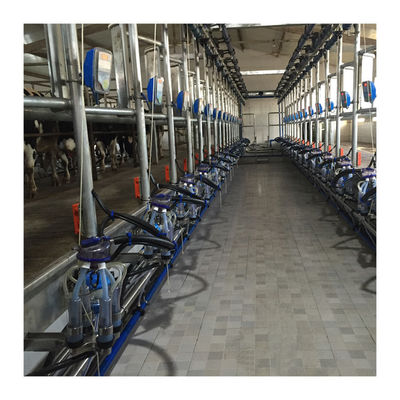

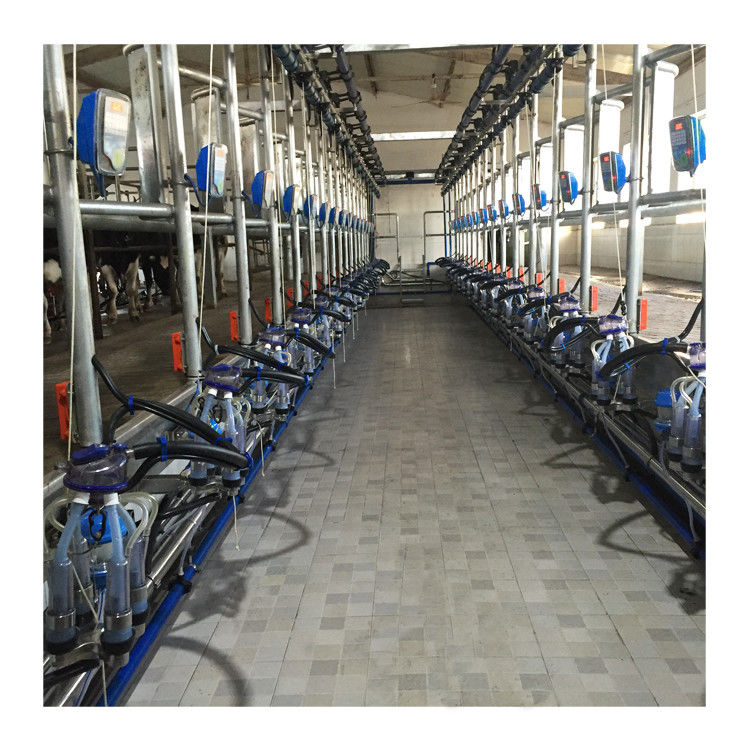

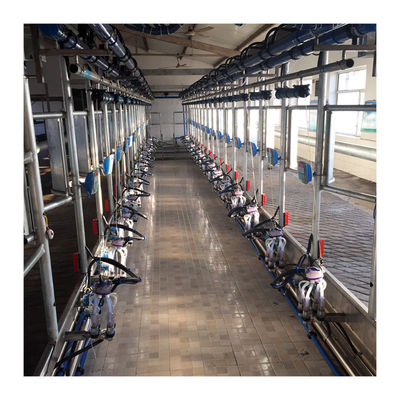

Dairy farm equipment vacuum pump cow milk meter herringbone milking parlor
1. Herringbone milking parlor introduce:
Dairy farm equipment vacuum pump cow milk meter herringbone milking parlor is used for large farm and milk a large number of cattle/goat, according to customer requirements, the layout can be designed to 2*4 - 2 *20, it means milk 8-40 cows at the same time. Dairy farm equipment herringbone milking parlor is the first choice for large farm and be widely used in the world.
2. Cow milk meter herringbone milking parlor parameters:
| Model | 9JB-2*12 | 9JB-2*16 | 9JB-2*20 |
| Working Vacuum | 50KPa | 50KPa | 50KPa |
| Pulsation rate | 60/40 | 60/40 | 60/40 |
| Pulse frequency | 60±3rpm | 60±3rpm | 60±3rpm |
| Pump power | 5.5KW | 2*4KW | 2*5.5KW |
| Vacuum pumping speed | 2100L/min | 2*1200L/min | 2*2100L/min |
| Milking pump power | 2.2KW | 4KW | 4KW |
| Milking pump flow | 8T/h | 10T/h | 10T/h |
3. Herringbone milking parlor quality:
1), Which the inner milk dirt attached to the main pipeline is thoroughly cleaned,especially in hot summer, can reduce bacterial content and milk is not easily to go bad.
2),to a great extent,it reduce the loaded and unloaded trouble of cleaning the main pipeline’s inner wall.
3),Achieve the purpose of recycling the residual milk attached to the main pipeline.
4),Save water and electricity.
4. Herringbone milking parlor installation:
1). After the buyer received the vacuum pump milking parlor, the seller will send two engineers to the buyer’s site to guide installation and train labors within 7~10 days.
2). The buyer should bear the cost include actual expenses for the visa, roundtrip tickets, insurance, accommodation and labor of engineers.
3). Tools for installation should be provided by the buyer, the seller will provide detailed tool list.
5. Herringbone milking parlor quality:
1). Electronic Milk Measurement system
2). Stimulation Massage Nipple
3). Full Automatic Surfing Cleaning system
4). Medicated Bath Spray system
5). Quick- release Canopy Frame system
6. Herringbone milking parlor delivery:
1) Before package and delivery, we will test cow milk meter milking parlor seriously and guarantee the machine runs stably with high accuracy.
2) After inspection, dairy farm equipment are wrapped by plastic and then carefully packed in wooden cases.
3) Then the whole set milking parlor will be put in one 20feet or 40 feet container, because it have too many parts.
7. Milking parlor related machines:
1) Milk cooling tank from 500L-10000L, it is the necessary machine to equip with milking parlor.
2) Pasteurization machine from 5L-500L.
8. Company profile:
Shandong Yuejiang Machinery Co., Ltd is manufacturer of pasture equipment, who provides pasture management system and reliable after-sales service.
We main produce: small vacuum pump/ piston type movable milking machine; medium fish-bone/ mid-set type milking parlor; large rotary type/ parallel type/ herringbone type milking parlor; feed mixer; livestock solid-liquid manure separator; cow head lock; cow free stall; fresh milk cooling tank and related parts.
Milking machine certificate:
Contact Person: alifer
Tel: 13573330259
Fax: 86-0533-4684368
