Product Details:
|
| Material: | Stainless Steel | Pump Power: | 4-8KW |
|---|---|---|---|
| Pulsation Rate: | 60/40 | Milking Pump Power: | 1.5-4KW |
| High Light: | Fishbone Automatic Herringbone Milking Parlour,Low Noise Herringbone Milking Parlour,Low Noise milking parlor equipment |
||

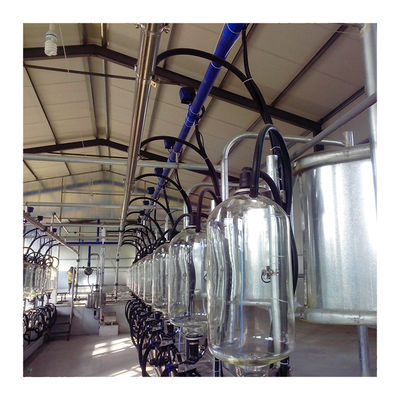

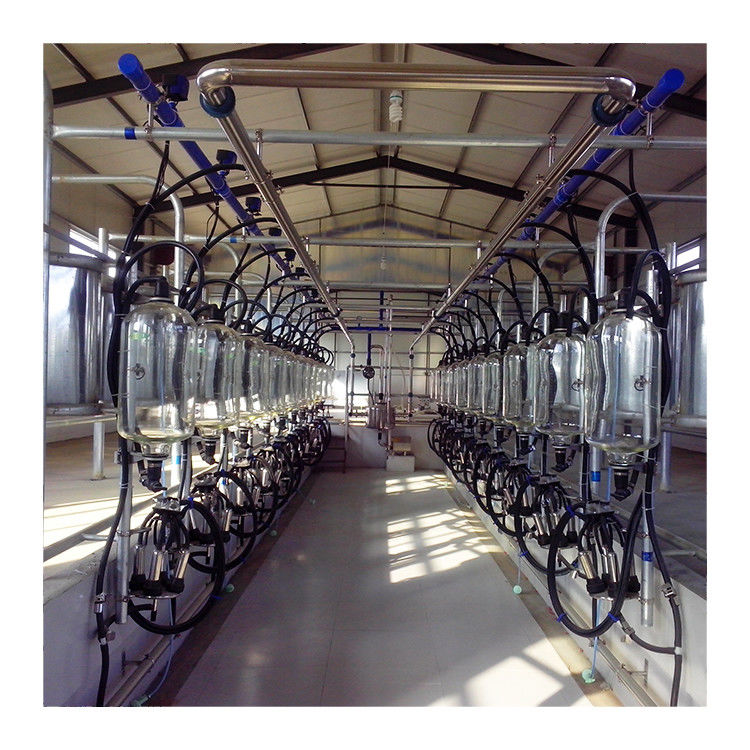

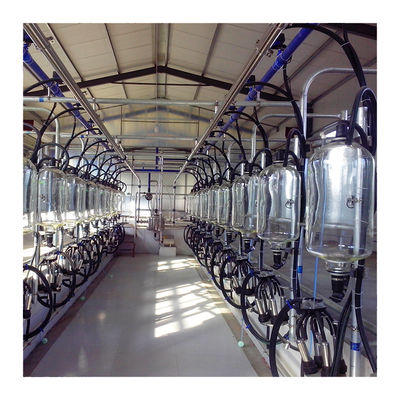

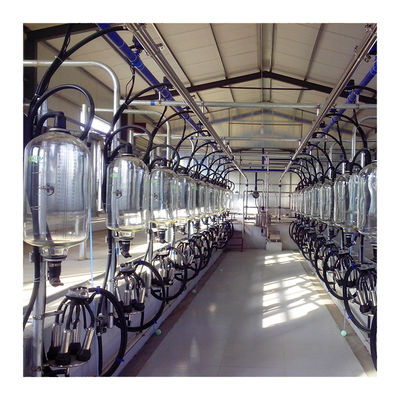

Low Noise Dairy Farm Fishbone Automatic Herringbone Milking Parlor
Description :
The automatic milking parlour systems are the most common design used on dairy farms with smaller herds. The cattle stand at a 45-degree angle. This design offers the milker a different access point to the udder than the parallel or tandem designs, and also allows access for different types of equipment to be used.
Parameter:
| Model | 9JY-I*12 | 9JY-I*14 | 9JY-I*16 | 9JY-I*18 | 9JY-2*8 | 9JY-2*12 | 9JY-2*16 | 9JY-2*20 |
| Working Vacuum | 50KPa | 50KPa | 50KPa | 50KPa | 50KPa | 50KPa | 50KPa | 50KPa |
| Pulsation rate | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 |
| Pulse frequency | 60±3rpm | 60±3rpm | 60±3rpm | 60±3rpm | 60±3rpm | 60±3rpm | 60±3rpm | 60±3rpm |
| Pump power | 4KW | 4KW | 5.5KW | 5.5KW | 5.5KW | 5.5KW | 2*4KW | 2*5.5KW |
| Vacuum pumping speed | 1400L/min | 1400L/min | 2300L/min | 2300L/min | 2300L/min | 2300L/min | 2*1400L/min | 2*2300L/min |
| Milking pump power | 1.5kw | 1.5kw | 1.5kw | 2.2KW | 2.2KW | 2.2KW | 4KW | 4KW |
| Milking pump flow | 5T/h | 5T/h | 5T/h | 8T/h | 8T/h | 8T/h | 20T/h | 20T/h |
Feature: 1. Install easily and quickly.
2. Layout compact,save space.
3. High efficiency and low cost.
4. Could improve cow’s milk production.
5. Could suit different cow/cattle/dairy size.
Application:
Suitable for big dairy with at least 50 milking goats or sheep.
Accessories: The milking parlor mainly includes cleaning system collection system and vacuum system.
Package and shipping:
1. Every order should use a WHOLE container to put goods, as the milking parlor have too many parts.
2. A milk cooling tank is good for you to buy along with the milking parlor together in order to save installation fee for you.
3. After you received all parts for milking parlor, pay attention to put all parts into one room to avoid missing.
Our company:
Shandong yuejiang Machinery Co., Ltd was founded in 1995, and located in zibo city of Shandong province, China. Zibo Yuejiang Machinery Co., Ltd provide complete milking program for farms by designing and producing rotary type, parallel type and herringbone type milking parlor with 24, 32, 36, 40, 48, 60, 80 cow units. The rapid exit canopy frame, herringbone canopy frame, and vacuum pump used in milking parlor are produced by ourselves. Meanwhile, we also produce milking machine, feed mixer, livestock solid-liquid manure separator, cow head lock, cow free stall, fresh milk cooling tank and related parts.
Certification: We have CE and ISO9001 certification for milking machine and related farm equipment.
