Product Details:
|
| Condition: | New | Voltage: | 380V/50Hz(three Phase) |
|---|---|---|---|
| Item: | Automatic Milking Flow Meter Herringbone Milking Parlor | Capacity: | 24-100point |
| Layout: | 2x4 To 2x32(Customized) | Cleaning: | CIP System |
| High Light: | High Efficient Dairy Milking Parlor,100 Point Dairy Milking Parlor,100 Point goat milking parlour |
||

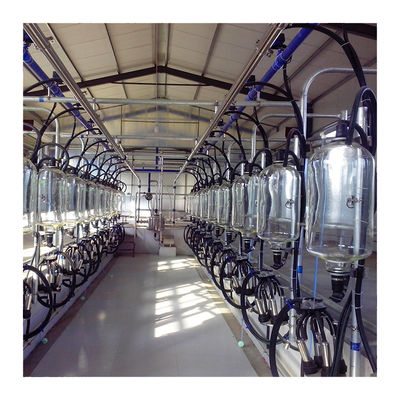

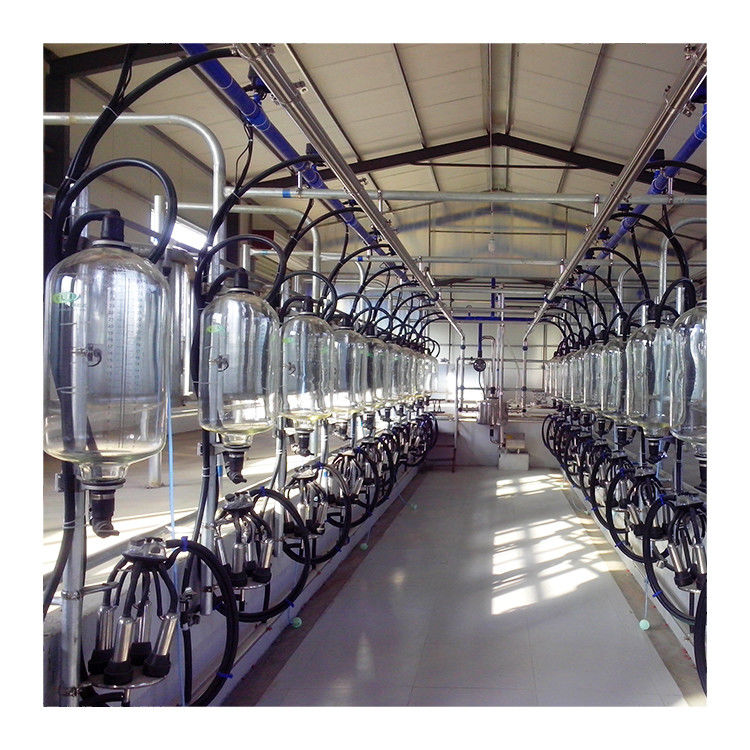

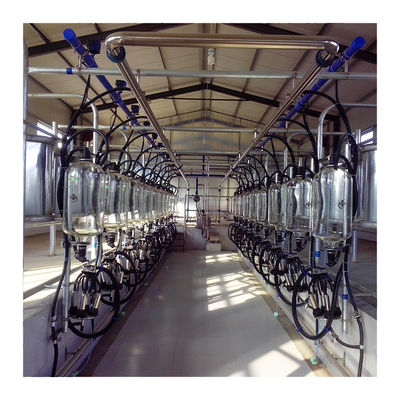

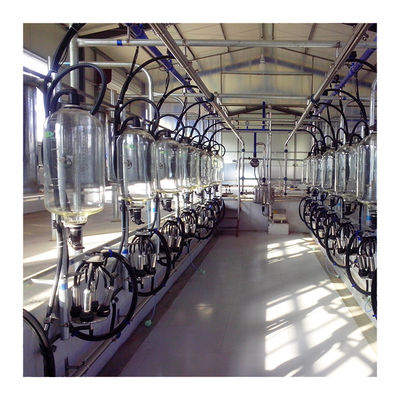

Introduction of this type milking parlor:
1. 9JY series automatic milking parlor could be used in big farm.
2. It can milk 10-40 cows at a time.
3. Improved the milking efficiency.
4. Meanwhile, the fresh milk more clean than manual milking.
It include the following functions:
1. Recycling Residual Milk System:
After finished milking, the surplus milk will come into the collecting tanks with the help of sponge ball and butterfly valve,
which decreased bacteria and saved labor, water and electricity and increased income.
This system is our unique advantage from other factories.
2. Half-automatic cleaning system:
After recycling the milk, add Acid&Alkali Cleaning Solution by human and washing the milking parlor (water flow).
3. Common Cow Exit Canopy Frame:
All cows enter the frame through one exit, after milking, all cows out through another exit one by one.
Technical Parameters:
| 9JY-2*4 | 9JY-2*8 | 9JY-2*12 | 9JY-2*16 | 9JY-2*20 | |
| Working Vacuum | 50Kpa | 50Kpa | 50Kpa | 50Kpa | 50Kpa |
| Pulsation Ratio | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 |
| Frequency | 60 ± 3 RPM | 60 ± 3 RPM | 60 ± 3 RPM | 60 ± 3 RPM | 60 ± 3 RPM |
| Vacuum pump power | 4 KW | 5.5 KW | 2*4 KW | 2*4 KW | 2*5.5 KW |
| Vacuum pump speed | 1200L/min | 2300L/min | 2*1400L/min | 2*1400L/min | 2*2300L/min |
| Milk pump speed | 8T/h | 8T/h | 20T/h | 20T/h | 20T/h |
| Milk pump power | 2KW | 2.2KW | 4KW | 4KW | 4KW |
Other quantity of heads could also be made according to your actual requirements.

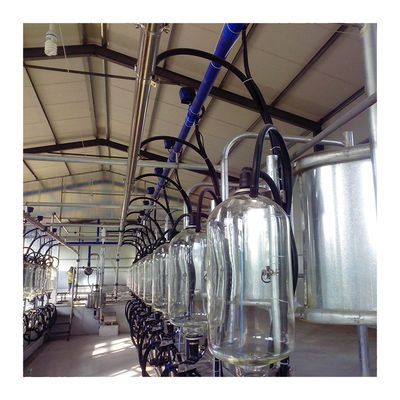

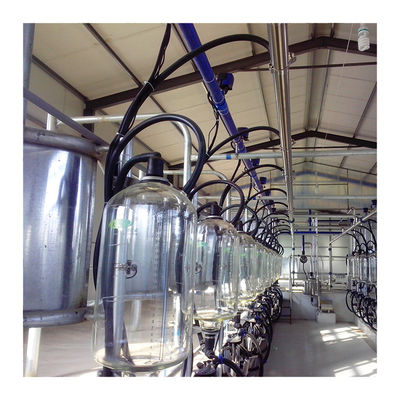

Milk metering bottle material: high-boron extra-hard glass, high transparency, intuitive milk volume. The single and double scales are obvious, accurate, double-line single-sided scale, Kg line and L line coexist to facilitate measurement calculation. Suitable for hot and cold cleaning, preventing hot and cold bursting. It is suitable for corresponding vacuum requirements and prevents vacuum bursting. There are 3 outlets, and each outlet is fully matched with the corresponding connector. The metering bottle is intuitive, accurate, and has the characteristics of small error. The scale line is baked with acid and alkali resistant materials and will not fall off.
Related products:
Delivery Issue:
1. Every order should use a whole container to put goods, as the milking parlor have too many parts.
2. A milk cooling tank is good for you to buy along with the milking parlor together in order to save installation fee for you.
3. After you received All parts for milking parlor, pay attention to put all parts into a sealed room to avoid missing.
Installation Policy:
1. After the buyer received the milking parlor, the seller will send two engineers to the buyer’s site to guide installation, adjust the whole system and train labors within 7~10 days.
2. The buyer should bear the cost include actual expenses for the visa, round-trip tickets, insurance, accommodation and labor of engineers. The labor charge for each engineer is USD80 per day.
3. Tools for installation should be provided by the buyer, the seller will provide detailed tool list.
Application:
Suitable for big dairy with at least 50 milking cows.
About our brand KLN:
Zibo Yuejiang Machinery Co., LTD is made in 1997, 17 years experience makes us to be the second largest factory in Shandong Province.
We get good reputation and build our own brand KLN.
Oversea's Business:
We start foreign trade from 2011, before that, we did many preparetions.
Each year, the company will attend 2 oversea exhibitions.
