Product Details:
|
Voltage: | 220V/380V/415V/440V/480V | Warranty: | 1 Year |
---|---|---|---|
Weight: | Depends On Capacity | After-sales Service Provided: | Video Technical Support |
Power(w): | According To Size | Material: | 304 Stainless Steel |
Dimension(l*w*h): | 525*525*410mm | Usage: | Juice And Milk |
Temperature: | 65 -99 | ||
High Light: | Sterilization Yogurt Pasteurizer Tank,20L Yogurt Pasteurizer Tank,20L mini pasteurization machine |
The plate sterilizer machine is sterilization equipment specially designed for juice,tea drinks or similar liquid materials. It is the ideal equipment that material can extend the shelf life purpose through sterilizing and cooling. According to users’ different requirements to material heating, sterilization, heat preservation and cooling, to design various technical requirements for different flow assembly, meet the technological requirements and have all kinds of security protection measures and high temperature alarm, low temperature function of the back flow. At the same time, according to users’ requirements, corresponding configuration of high accuracy of the automatic control system. Semi-automatic configuration: the whole process of operation is semi-automatically control. Operator can control the pumps, valves and back flow function on the control panel. By the temperature control PID to maintain the sterilization temperature. Sterilization temperature has a continuous record.
Model | BS-100L | BS-50L |
Internal diameter | 500mm | 250mm |
Output | 100kg/time | 50kg/time |
Material | SUS304 | SUS304 |
Thickness | 1.5 mm | 1.5 mm |
Height | 1650mm | 1650mm |
Sterilization time | 5-40min(adjustable) | 5-40min(adjustable) |
Sterilization temperature | 50-99°C | 50-99°C |
Voltage | 380V/50Hz | 380V/50Hz |
Rate of refrigeration compressor | 3kw | 3kw |
Heat source | electric heating | electric heating |
Heat up | 25-35minute | 25-35minute |
Power | 13kw | 6.5kw |
Contour dimension | 1700x1000x1710mm | 1700x1000x1710mm |
1)All parts in contact with the equipment are made of stainless steel, and the casing gasket and seal are made of food grade rubber, in line with national standards. 2)The minimum single tank feeding capacity is 15 liters. 3)Electronic temperature control 60-98c adjustable and automatic constant temperature 4)Adjustable sterilization time.
milk pasteurizer machine widely used in hospital, food, disinfection cabinet, water treatment equipment, food and beverage processing and packaging equipment, food factory, cosmetics factory, milk factory, brewery, beverage factory, bakery, cold room, etc.
milk pasteurizer machine multi-functions:
such cooling, heating , pasteurizing ,temperature keeping and controlling, , in short time and very easy to operate

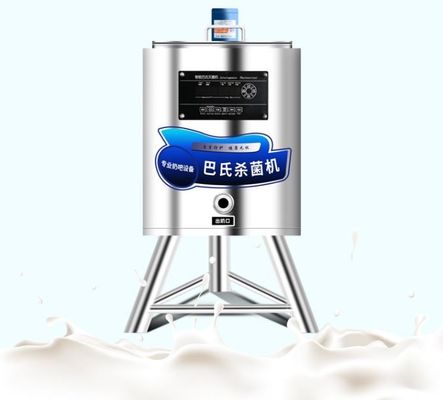

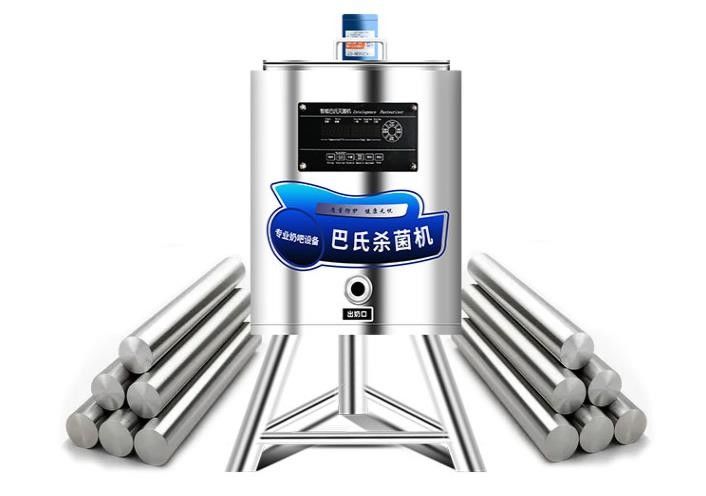

milk pasteurizer machine includes Compressor, water tank, milk tank, circulating water pump, foundation, water cycle tank and milk tank. There are two layer of water cycle tank; one is up, the other one is down. Up layer cool water , down layer hot water, water cycle through by water pump come and out.
milk can:Milk can also known as milk storage bucket, milk transport bucket, milk running bucket.milk can is a storage and transportation vehicle for ranching and dairy farm, widely used in ranching, dairy factory, beverage factory, urban milk bar and other places.The transport milk barrel is made of SUS304 stainless steel as a whole, at the same time, it is treated by internal and external polishing technology, with beautiful appearance, convenient cleaning, sealing and reliable quality.According to customer requirements can be made into a single layer, with thermal insulation, with three kinds of valve outlet.The stainless steel milk tank is corrosion-resistant, durable and highly sealable, and can store liquids and solids.
milking parlor:
One fixed type milking system, each unit is separated and flexible;There is a stand column, fixed frame and adjustable arch at each end of the cow place.There is a carriage in every two cow places, fixing is easy and convenient, choosing different automation degree of guardrail.The groove edge is made of stainless steel or galvanized plates, fixed by bolts or cement.Door system: manual control, vacuum drive and pneumatically drive.
Standard carton packaging for milk bucket and wooden case for milk pasteurizer.
Our company is head quartered in China, which is specialized in providing complete milking schemes for medium, large and small ranches. Meanwhile, we provide a complete set of products related to ranches, among which the quick release type of milking machine, milk pasteurizer machine,fishbone type scaffolding and special vacuum pump are independently manufactured by our company.Therefore, if there is any problem with our products, we will immediately provide the most timely after-sales service.If you need anything, please contact us.
certifications :
We have CE and ISO9001 certification for milking machine and related farm equipment.
Exhibition and international trade:
Our products have been exported to Malaysia, Indonesia, Mongolia, Jordan, South America, Libya, etc. Welcome friends from home and abroad to visit our company or negotiate with us. We will participate in Russian and Indian exhibitions every year.
