Product Details:
|
| Application: | Milk Etc. Liquid Pasteurization | Name: | Milk Pasteurizer |
|---|---|---|---|
| Function: | Water Cooling Milk Pasteurizer | Capacity: | 5-500L |
| Sterilization Temperature: | 65-99 (Adjustable) | Voltage: | 220V |
| Weight: | 150kg | Dimension(l*w*h): | 80*55*180cm |
| High Light: | Small Batch Stainless Steel Pasteurizer,500L Batch Stainless Steel Pasteurizer,500L Milk Pasteurization Machine |
||

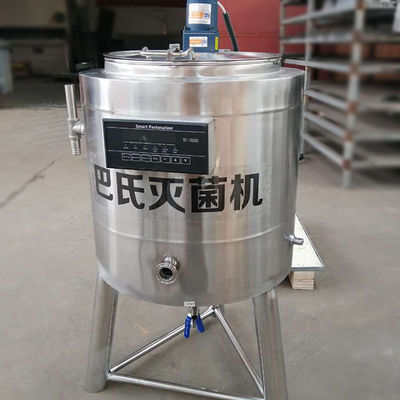

Factory direct sale Small batch Stainless steel pasteurization machine
Product introduction
Milk pasteurization machine /Juice pasteurization machine /Ice cream pasteurization machine/chocolate sterilize machine
This milk pasteurization machine is made of food grade stainless steel 304material.
The machine is controlled by microcomputer, and the temperature control is precise.
It uses water immersion heating tube, the heating area is large with high efficiency.
The machine adopts polyurethane insulation structure, which saves energy.
It can meet different groups of users, farmers, milk bar, pastures, families, restaurants and so on.
Milk pasteurizer features:
Capacity: 30L/50L/75L/100L/150L/200L/300L/500L
Voltage: 220V/380V
Power: 2KW/4KW/6KW
Pasteurization time: 30-50min
Temperature range adjustable: 0-99degree
Material thickness: 1.5mm
Material: Food grade stainless steel
Cool type: Water cool
Temperature control system: PID control
Power connection : four square meter copper wire
Parameters
| Model | BS-100L | BS-150L |
| Internal diameter | 500mm | 640mm |
| Output | 100kg/time | 150kg/time |
| Material | SUS304 | SUS304 |
| Thickness | 1.5 mm | 1.5 mm |
| Height | 1650mm | 1650mm |
| Sterilization time | 5-40min(adjustable) | 5-40min(adjustable) |
| Sterilization temperature | 50-99°C | 50-99°C |
| Voltage | 380V/50Hz | 380V/50Hz |
| Rate of refrigeration compressor | 3kw | 3kw |
| Heat source | electric heating | electric heating |
| Heat up | 25-35minute | 25-35minute |
| Power | 13kw | 16kw |
| Contour dimension | 1700x1000x1710mm | 1700x1000x1710mm |
Application of Milk pasteurizer
The water temperature and the temperature of the milk is set up, the water temperature exceeds the seted temperature of circulating water sterilization layer into cold water to reduce the temperature of the milk sterilization machine, when the water temperature is too low circulating water pump into the hot water, improve water temperature, the water temperature maintained at the set temperature. Milk tank above the stirring device, through agitating device for agitating milk to make the milk heat evenly.

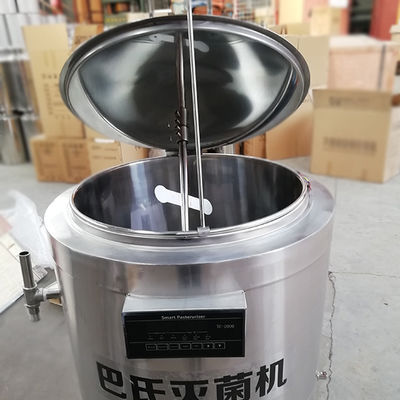

Main parts of Milk pasteurizer
Pasturing machine consists of pot body, pot, mixer, heating jacket, supporting and transmission device, the shaft sealing equipment etc. Pot body, pot, mixer, and shaft seal, electric heating device etc all made of by stainless steel 304.
Our company:
Our company is headquartered in China, which is specialized in providing complete milking schemes for medium, large and small ranches. Meanwhile, we provide a complete set of products related to ranches, among which the quick release type of milking machine, fishbone type scaffolding and special vacuum pump are independently manufactured by our company.Therefore, if there is any problem with our products, we will immediately provide the most timely after-sales service.If you need anything, please contact us.
Package and shipping:
Machines would be packed up well with plywooden case,which can gurantee no damage during the transportation.The shipping method depends on our customer requirements.We can do air door delivery by DHL/FedEx,or to the airport only,as well as shipping to the port or the door step by sea.Just tell us your demand and we would meet all your requirements.
Exhibition :
We attend exhibition every year in Russia, India, Germany, Indonesia etc.
