herringbone type 5T/h 20 Unit Milking Parlour Low Noise Automatic Milking Parlour

herringbone type 5T/h 20 Unit Milking Parlour Low Noise Automatic Milking Parlour
herringbone type 5T/h 20 Unit Milking Parlour Low Noise Automatic Milking Parlour herringbone type 5T/h 20 Unit Milking Parlour Low Noise Automatic Milking Parlour herringbone type 5T/h 20 Unit Milking Parlour Low Noise Automatic Milking Parlour herringbone type 5T/h 20 Unit Milking Parlour Low Noise Automatic Milking Parlour herringbone type 5T/h 20 Unit Milking Parlour Low Noise Automatic Milking Parlour herringbone type 5T/h 20 Unit Milking Parlour Low Noise Automatic Milking Parlour

Large Image :  herringbone type 5T/h 20 Unit Milking Parlour Low Noise Automatic Milking Parlour

Product Details:
Place of Origin: China
Brand Name: KLN
Certification: CE ISO9001
Model Number: 9JY
Payment & Shipping Terms:
Minimum Order Quantity: 8 set
Price: $120.00- $200.00 piece
Packaging Details: custom
Delivery Time: 30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade assurance
Supply Ability: 100set per month

herringbone type 5T/h 20 Unit Milking Parlour Low Noise Automatic Milking Parlour

Description
Warranty: 1 Year Condition: New
Use: Automatic Milking System Type: Herringbone Type
Voltage: 380V Product Name: Cow Cock Goat Sheep Milking Machine
Layout: 2x4 To 2x32(Customized) After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

Herringbone Type 20 Unit Milking Parlour

,

5T/h 20 Unit Milking Parlour

,

5T/h Automatic Milking Parlour

dairy farm low noise automatic herringbone milking parlor for sale



Description :

Some dairy farm have many milking cows which takes very long time for manual milking. So a set of milking parlor is necessary to install for more efficiency milking.The milking parlor have 2 parallel lines, each line can install 4 stalls, 6 stalls, 8 stalls, 10 stalls ...... to milk 8 cows, 12 cows, 16 cows, 20 cows ...... at a time. One hour can milk about 3~4 times

herringbone type 5T/h 20 Unit Milking Parlour Low Noise Automatic Milking Parlour 0

Model

9JY-I*12

9JY-I*14

9JY-I*16

9JY-I*18

9JY-2*8

9JY-2*12

9JY-2*16

9JY-2*20

Working Vacuum

50KPa

50KPa

50KPa

50KPa

50KPa

50KPa

50KPa

50KPa

Pulsation rate

60/40

60/40

60/40

60/40

60/40

60/40

60/40

60/40

Pulse frequency

60±3rpm

60±3rpm

60±3rpm

60±3rpm

60±3rpm

60±3rpm

60±3rpm

60±3rpm

Pump power

4KW

4KW

5.5KW

5.5KW

5.5KW

5.5KW

2*4KW

2*5.5KW

Vacuum pumping speed

1400L/min

1400L/min

2300L/min

2300L/min

2300L/min

2300L/min

2*1400L/min

2*2300L/min

Milking pump power

1.5kw

1.5kw

1.5kw

2.2KW

2.2KW

2.2KW

4KW

4KW

Milking pump flow

5T/h

5T/h

5T/h

8T/h

8T/h

8T/h

20T/h

20T/h



Feature:

Function of this type milking parlor:

1. Recycling Residual Milk System: After finished milking, the surplus milk will come into the collecting tanks with the help of sponge ball and butterfly valve, which decreased bacteria and saved labor, water and electricity and increased income. This system is our unique advantage from other factories.

2. Half-automatic cleaning system: After recycling the milk, add Acid&Alkali Cleaning Solution by human and washing the milking parlor (water flow).

3. Common Cow Exit Canopy Frame: All cows enter the frame through one exit, after milking, all cows out through another exit one by one.

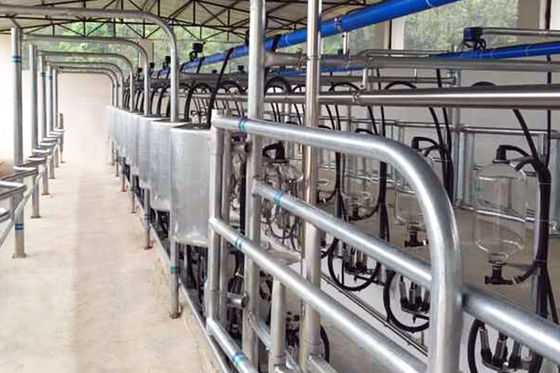

herringbone type 5T/h 20 Unit Milking Parlour Low Noise Automatic Milking Parlour 1

Application:

Suitable for big dairy with at least 50 milking goats or sheep.

Accessories: The milking parlor mainly includes cleaning system collection system and vacuum system.

Package and shipping:

1. Every order should use a WHOLE container to put goods, as the milking parlor have too many parts.

2. A milk cooling tank is good for you to buy along with the milking parlor together in order to save installation fee for you.

3. After you received all parts for milking parlor, pay attention to put all parts into one room to avoid missing.



Our company:

Shandong Yuejiang Machinery Co., Ltdwas established in 1997. We are a professional manufacturer engaged in the research, development, production, sale and service of farm systems. We are located in Zibo, Shandong Province, China, with convenient transportation access. Our company covers an area of 7000square meters, with our abundant experience and industrious and hardworking staff members. We are professional specialized in dairy equipment such as Milking Machine, Milking System, Milk Cooling Tanks, Milking Machine Parts, Milk Can, Milk Mixer, Milk Shell Milk Meter, Milk Claw, Milk Pulsator and all other parts used in dairy .We are not just restrict us to manufacturing the dairy equipments by ourselves,we are also researching all agriculture products for dairy and help client to purchase ;with long and professional experience, it's available for us to offer competitive price with good quality.

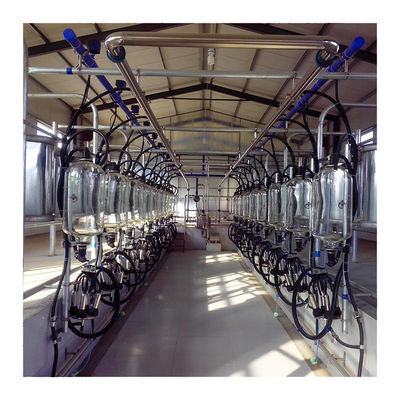

herringbone type 5T/h 20 Unit Milking Parlour Low Noise Automatic Milking Parlour 2

Certification: We have CE and ISO9001 certification for milking machine and related farm equipment.

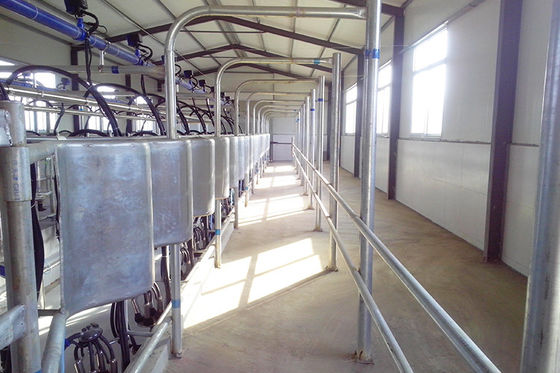

Exhibition: We attend exhibition every year in Russia, India, Germany, Indonesia etc.herringbone type 5T/h 20 Unit Milking Parlour Low Noise Automatic Milking Parlour 3
