Product Details:
|
| Warranty: | 12 Months | After-sales Service Provided: | Video Technical Support,Free Spare Parts |
|---|---|---|---|
| Use: | Automatic Milking System | Type: | Herringbone Type |
| Voltage: | 220v/380v | Application: | Dairy Farm Equipment |
| Capacity: | 12-100 Points | Layout: | 2x4 To 2x32(Customized) |
| High Light: | Automatic Herringbone Milking Parlor,100 Points Herringbone Milking Parlor,100 Points Sheep Milking Parlour |
||
The milking parlor is the heart of the dairy farm. Whether the Sheep milking parlor works well is directly related to the yield and quality of milk. In the dairy farm, the automatic milking parlor is the place where the cows flow most frequently. A goat is 2-3 times a day. The area to be squeezed in the milking parlor machine is the place with the highest density of goats, and the average area of goat is only 1.6-2m2. Such frequent cattle flow and such a dense herd make the temperature and humidity of the Sheep milking machine far higher than that of the ordinary parlour, and the environmental control is more difficult than others. Therefore, in the hot summer and cold winter, ventilation, cooling, and heating must be targeted to take some environmental control measures.
Parameter:
| Model | 9JZ-I*12 | 9JZ-I*14 | 9JZ-I*16 | 9JZ-I*18 | 9JY-2*8 | 9JY-2*12 | 9JY-2*16 | 9JY-2*20 |
| Working Vacuum | 50KPa | 50KPa | 50KPa | 50KPa | 50KPa | 50KPa | 50KPa | 50KPa |
| Pulsation rate | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 |
| Pulse frequency | 60±3rpm | 60±3rpm | 60±3rpm | 60±3rpm | 60±3rpm | 60±3rpm | 60±3rpm | 60±3rpm |
| Pump power | 4KW | 4KW | 5.5KW | 5.5KW | 5.5KW | 5.5KW | 2*4KW | 2*5.5KW |
| Vacuum pumping speed | 1440r/min | 1440r/min | 1440r/min | 1440r/min | 1440r/min | 1440r/min | 2*1440r/min | 2*1440r/min |
| Milking pump power | 1.5kw | 1.5kw | 1.5kw | 2.2KW | 2.2KW | 2.2KW | 4KW | 4KW |
| Milking pump flow | 5T/h | 5T/h | 5T/h | 8T/h | 8T/h | 8T/h | 20T/h | 20T/h |
Features:
1, The milk flows to the cooling tank directly through close milk pipe, avoiding to be contaminated.
2, Automatically examine milking goats estrous, disease, milk production,etc.
3, Economical, Operate easily, high efficiency
4. We can expertly craft a milking parlor for your dairy.
Accessories: The 2019 new best quality guarantee sheep automatic milking parlor equipment machine mainly includes milking system, cleaning system collection system and vacuum system.

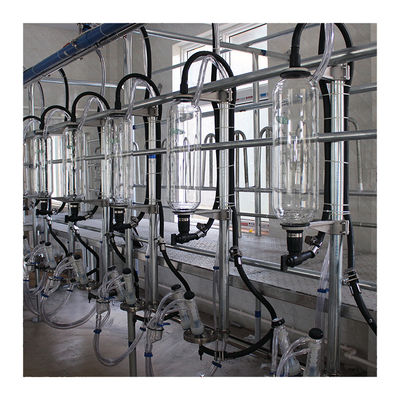

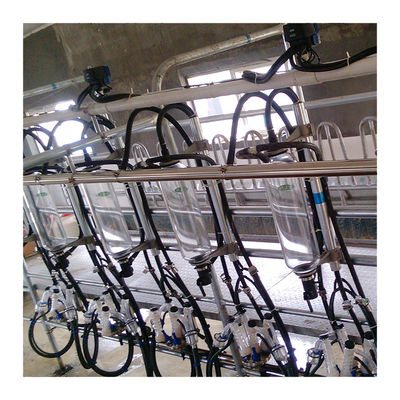

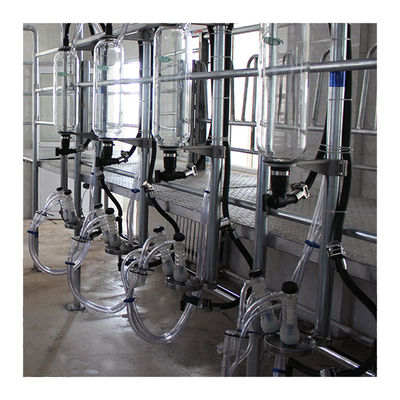

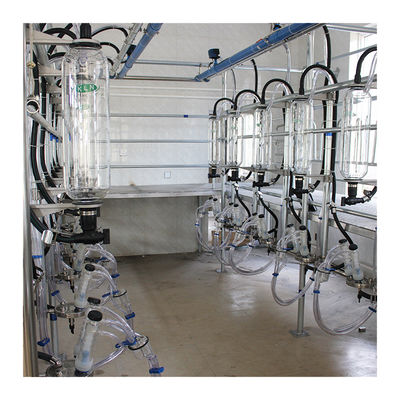

Milking system mainly includes milk cup group, metering bottle, stainless steel milk tube and so on
cleaning system mainly includes Rubber hose, cleaning pan and so on.
collection system mainly includes Collection tank, milk pump and so on.

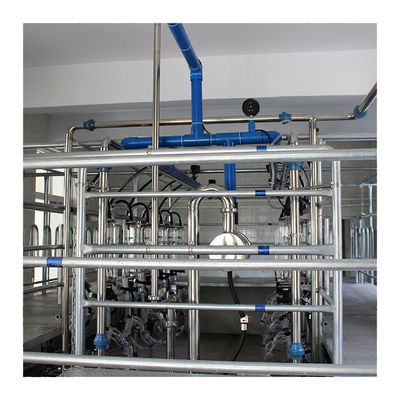

vacuum system mainly includes Vacuum pump, stabilizer tank and so on.
Related product:
1.bulk stainless steel small milk cooling tank
This milk cooling tank adopted international advanced technology. Large-area cooling by round-type and straight-walled, through automatic control systems, intuitive operation in one step, so that the raw milk rapidly reduced to the required temperature 2 to 3 degree, and keep it. Prevent multiplication of bacteria and maintain the raw milk in A-class state.
2.milk can
Stainless steel milk bucket (alias: milk bucket, milk transport bucket, milking bucket, milk turnover bucket, temporary storage bucket). The milk cans produced and operated by the company have specifications of 15L, 20L, 25L, 30L, 40L, 50L, etc. Complete specifications, can be customized according to customer needs or drawings
Introduction of company:
Our company was established in 1997. We are a professional manufacturer engaged in the research, development, production, sale and service of farm systems. We are located in Zibo, Shandong Province, China, with convenient transportation access. Our company covers an area of 7000 square meters, with our abundant experience and industrious and hard working staff members. We are professional specialized in dairy equipment such as Milking Machine, Milking parlor, Milk Cooling Tanks, Milking Machine Parts, Milk Can, Milk Mixer, Milk Shell Milk Meter, Milk Claw, Milk Pulsator and all other parts used in dairy .We are not just restrict us to manufacturing the dairy equipments by ourselves,we are also researching all agriculture products for dairy and help client to purchase ;with long and professional experience, it's available for us to offer competitive price with good quality.
1. Every order should use a WHOLE container to put goods, as the milking machine have too many parts.
2. A milk cooling tank is good for you to buy along with the milking parlor equipment together in order to save installation fee for you.
3. We can deliver the milking parlor machine to your nearest sea port.
4. Any special requirement of shipping, please talk with us, we will help you to solve the problems.
Certification on milking machine: ISO9001, CE
Exhibition and international trade:
Our goat milking parlors have been exported to Malaysia, Indonesia, Mongolia, Jordan, South America, Libya, etc. Welcome friends from home and abroad to visit our company or negotiate with us. We will participate in Russian and Indian exhibitions every year.
Installation:
1. After the buyer received the milking parlor, the seller will send two engineers to the buyer’s site to guide installation, adjust the whole system and train labors within 7~10 days.
2. The buyer should bear the cost include actual expenses for the visa, round-trip tickets, insurance, accommodation and labor of engineers.
3. Tools for installation should be provided by the buyer, the seller will provide detailed tool list.
1. Are you manufacturer ?
Yes we are the manufacturer and welcome to visit our factory
2. Can you change the machine voltage as our request?
Yes we can change the machine voltage as customers’ request
3 .How about your after-sale service?
Our engineer can go outside to install and train your workers to operate the full machine line.
4 .Warranty time of your machine?
1 years warranty time except for consumable spare parts
5. How about delivery time of your machine?
Generally it needs 5-7 days, for big machines or producing line, it will be much longer but within our negotiated delivery time
