Product Details:
|
| Warranty: | 12 Months | After-sales Service Provided: | Video Technical Support,Free Spare Parts |
|---|---|---|---|
| Use: | Automatic Milking System | Type: | Herringbone Milking Parlor |
| Voltage: | 380V | Application: | Dairy Farm Equipment |
| Usage: | Cow Milking System | Capacity: | 12-100 Points |
| High Light: | Buffalo Modern Milking Parlour,60RPM Modern Milking Parlour,60RPM Buffalo Milking Parlour |
||

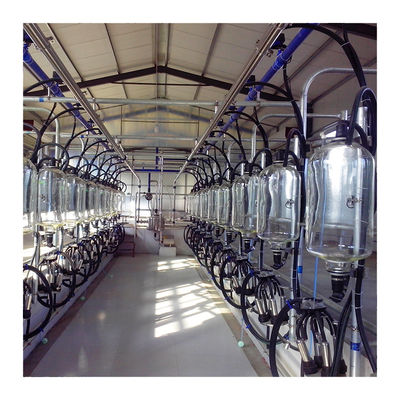

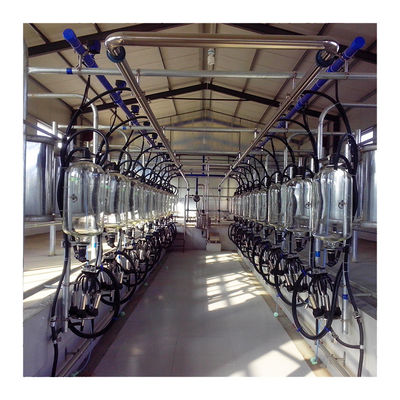

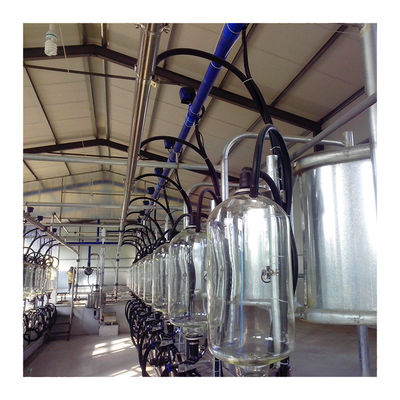

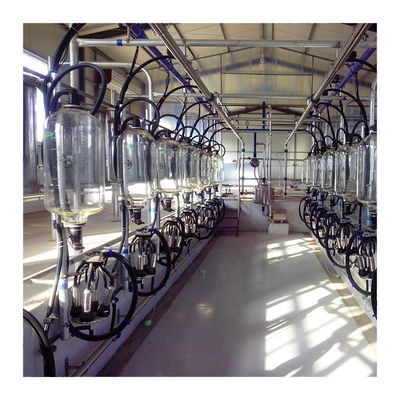

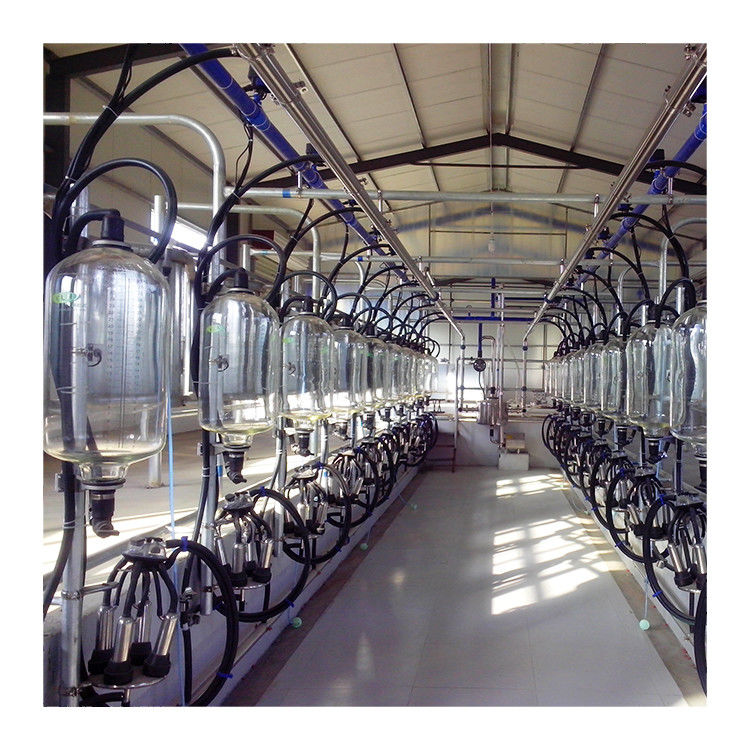

Dairy Farm Goat Sheep Buffalo Cow Automatic Herringbone Milking Parlor
Milking Parlor Features:
This series product has the festures of recycling the residual milk attached to the main pipeline:
1.The inner milk dirt attached to the main pipeline is thoroughly cleaned,especially in hot summer, can reduce bacterial content and milk is not easily to go bad.
2.to a great extent,it reduce the loaded and unloaded trouble of cleaning the main pipeline’s inner wall.
3.Achieve the purpose of recycling the residual milk attached to the main pipeline.
4.Save water and electricity.
Milking parlor Parameter:
| Herringbone milking parlor | |||||||
| Model | 9JY-2*6 | 9JY-2*8 | 9JY-2*10 | 9JY-2*12 | 9JY-2*16 | 9JY-2*18 | 9JY-2*20 |
| Working Vacuum(kpa) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Pulsation Ratio | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 |
| Frequency(RPM) | 60 ± 3 | 60 ± 3 | 60 ± 3 | 60 ± 3 | 60 ± 3 | 60 ± 3 | 60 ± 3 |
| Vacuum pump power(KW) | 5.5 | 5.5 | 5.5 | 5.5 | 2*4 | 2*4 | 2*5.5 |
| Vacuum pump speed(L/min) | 2300 | 2300 | 2300 | 2300 | 2*1400 | 2*1400 | 2*2300 |
| Milk pump speed(T/h) | 5 | 8 | 8 | 8 | 20 | 20 | 20 |
| Milk pump power(KW) | 1.5 | 2.2 | 2.2 | 2.2 | 4 | 4 | 4 |
The main structure for Herringbone Milking Parlor:
Vacuum system, milking system, metering device, milk collecting system, residual milk recycling, cleaning system, electrical control system, basic piping, scaffolding.
Cleaning system
Milk collection system:
Stainless steel milk pump, stainless steel filter, stainless steel collecting cylinder, liquid level lever, etc
Vacuum system
Milking parlor Packaging & Delivery:
We will use carton box, wooden case, pupple bag to pack all parts accordingly.
P
Company information
Shandong Yuejiang Machinery Co., Ltd is manufacturer of pasture equipment, who provides pasture management system and reliable after-sales service.
We main produce: small vacuum pump/ piston type movable milking machine; medium fish-bone/ mid-set type milking parlor; large rotary type/ parallel type/ herringbone type milking parlor; feed mixer; livestock solid-liquid manure separator; cow head lock; cow free stall; fresh milk cooling tank and related parts.
Milking parlor Certification:
After-sale service:
After the milk hall delivery, the after-sales service staff will follow up the milk hall regularly by telephone to ensure that any problems you have in use can be solved in a timely manner.
Overseas Business:
1.We start foreign trade from 2011, before that, we did many preparations.
2.Each year, the company will attend 2 oversea exhibitions.
