Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System

Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System
Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System

Large Image :  Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System

Product Details:
Place of Origin: China
Brand Name: KLN
Certification: CE/ISO
Model Number: 9JY
Payment & Shipping Terms:
Minimum Order Quantity: 8 stalls
Price: 900-4500 dollars/stall
Packaging Details: load in one container
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 stalls/month

Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System

Description
Warranty: 12 Months After-sales Service Provided: Video Technical Support
Use: Automatic Milking System Type: Herringbone Type
Voltage: 380V Power(w): 4-7.5KW
Product Name: Herringbone Milking Parlor Application: Dairy Farm Equipment
High Light:

Herringbone Type Cow Milking Parlour

,

Glass Jar Cow Milking Parlour

,

Herringbone Type Automatic Milking System

Glass Jar Automatic Dairy Farm Cow Herringbone Milking Parlor

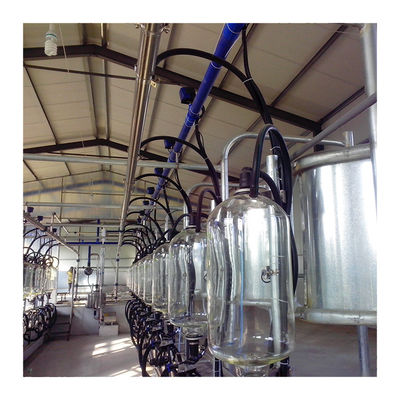

Introduction of Herringbone Milking Parlor

1. 9JY series automatic milking parlor could be used in big farm.

2. It can milk many cows at a time.

3. Improved the milking efficiency.

4. Meanwhile, the fresh milk more clean than manual milking.

Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System 0

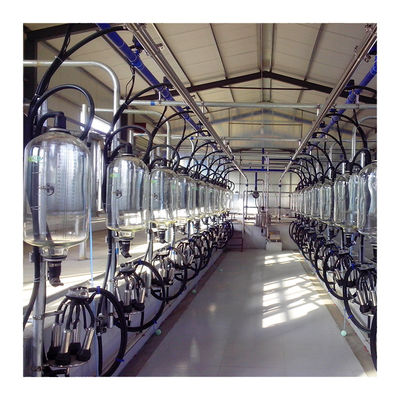

The Herringbone Milking Parlor include the following functions:

1. Recycling Residual Milk System:



After finished milking, the surplus milk will come into the collecting tanks with the help of sponge ball and butterfly valve,

which decreased bacteria and saved labor, water and electricity and increased income.

This system is our unique advantage from other factories.

Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System 1

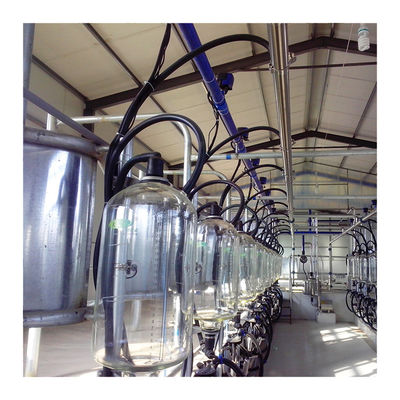

2. Half-automatic cleaning system:



After recycling the milk, add Acid&Alkali Cleaning Solution by human and washing the milking parlor (water flow).

Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System 2

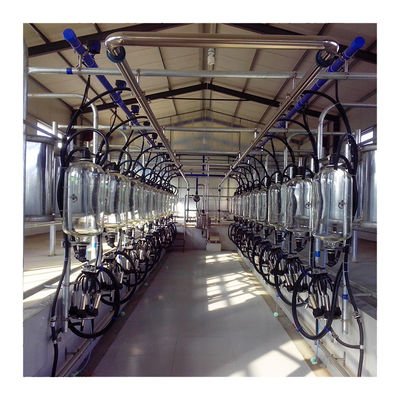

3. Common Cow Exit Canopy Frame:



All cows enter the frame through one exit, after milking, all cows out through another exit one by one.



Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System 3

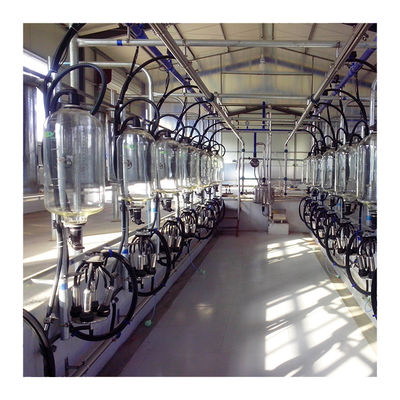

Technical Parameters:

  9JY-2*4 9JY-2*8 9JY-2*12 9JY-2*16 9JY-2*20
Working Vacuum 50Kpa 50Kpa 50Kpa 50Kpa 50Kpa
Pulsation Ratio 60/40 60/40 60/40 60/40 60/40
Frequency 60 ± 3 RPM 60 ± 3 RPM 60 ± 3 RPM 60 ± 3 RPM 60 ± 3 RPM
Vacuum pump power 4 KW 5.5 KW 2*4 KW 2*4 KW 2*5.5 KW
Vacuum pump speed 1200L/min 2300L/min 2*1400L/min 2*1400L/min 2*2300L/min
Milk pump speed 8T/h 8T/h 20T/h 20T/h 20T/h
Milk pump power 2KW 2.2KW 4KW 4KW 4KW



Other quantity of heads could also be made according to your actual requirements.

Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System 4

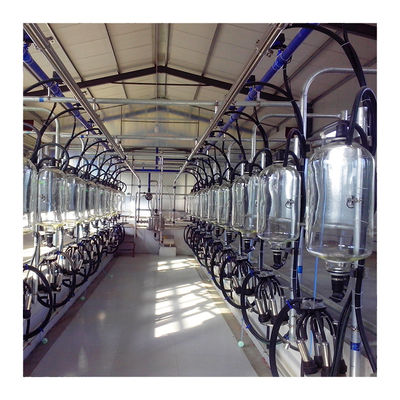

Delivery Issue:

1. Every order should use a WHOLE container to put goods, as the milking parlor have too many parts.

2. A milk cooling tank is good for you to buy along with the milking parlor together in order to save installation fee for you.

3. After you received All parts for milking parlor, pay attention to put all parts into a sealed room to avoid missing.

Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System 5



Installation Policy:

1. After the buyer received the milking parlor, the seller will send two engineers to the buyer’s site to guide installation, adjust the whole system and train labors within 7~10 days.
2. The buyer should bear the cost include actual expenses for the visa, round-trip tickets, insurance, accommodation and labor of engineers. The labor charge for each engineer is USD80 per day.
3. Tools for installation should be provided by the buyer, the seller will provide detailed tool list.



Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System 6



Application for Herringbone Milking Parlor:

Suitable for big dairy with at least 50 milking cows.

Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System 7


About our brand KLN:
Shandong Yuejiang Machinery Co., LTD is made in 1997, 17 years experience makes us to be the second largest factory in Shandong Province.
We get good reputation and build our own brand KLN.



Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System 8


Oversea's Business:
We start foreign trade from 2011, before that, we did many preparetions.
Each year, the company will attend 2 oversea exhibitions.

Glass Jar Herringbone Type Cow Milking Parlour Automatic Milking System 9
