Product Details:
|
| Certification: | CE,ISO9001 | Name: | Electronic Milk Meter Milking Machine |
|---|---|---|---|
| Type: | Dairy Farm Equipment | Voltage: | 110v/180v-240v/50-60HZ |
| After-sales Service Provided: | Online Support | Function: | Function: Collect Fresh Milk |
| Usage: | For Cow.sheep And Horse | ||
| High Light: | Vacuum Pump Cow Milking Equipment,12 cows/hour Cow Milking Equipment,10 cows/hour portable milking machine |
||

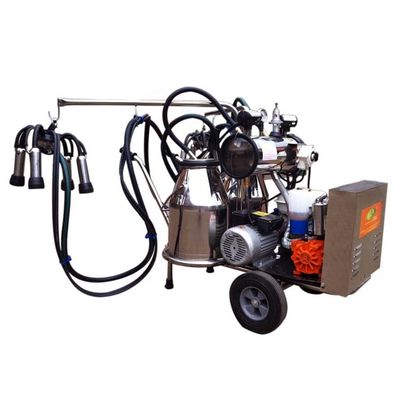

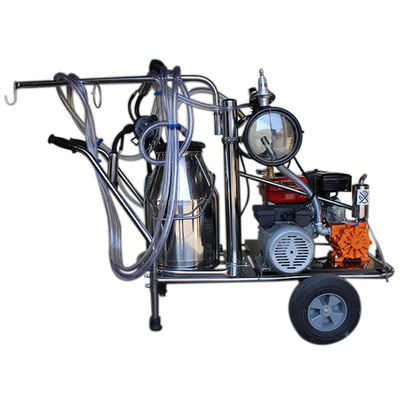

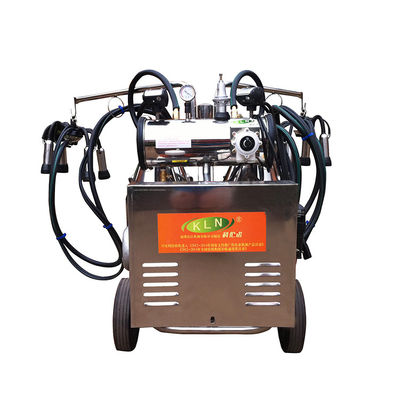

Vacuum Pump electronic milk meter Milking Machine For Goats and Cows Bucket
Specification:
The cow milking machine is a reliable portable machines and farm machinery used for small dairy farm and cow private investor, it’s designed according to international standard, milking reliable instead of traditional way by hand. The portable milk machine could be used for cow, sheep, and buffalo at the same time, just change the different milking cluster group. The portable milking machine enables you to milk 10-12 cows per hour with one bucket or 20-24 cows per hour with two buckets. Therefore, hand milkers can triple their milking capacity and milk more cows within the same time. Reduced milking time means you can expand your herd size, which means more profit for you. It is widely welcomed in foreign and domestic market nowadays.
Parameter for single buceket and double buckets milking machine:
| model | 9J-I | 9J-II |
| Milking cup group number | 1 set | 2 set |
| Pulsation from | Gas pulsation | |
| Productivity | 10-12 cows/hour | 20-24 cows/hour |
| Work vacuum | 50Kpa | |
| Pulsation ratio | 60:40 | |
| Pulsation frequency | 60±3r/min | |
| Vacuum pump power | 1.1KW(220v,380v) | |
| Vacuum pumping speed | 170L/min | 220L/min |
Feature:
With moblie wheel, flexible and convenient to move to milk.
1. Light solution-always well balanced, regardless of how full the buckets are.
2. Low noise, so as not to scare the livestock.
3. Easy to use-comes with instructions and a 6 month warranty on all parts.
4. We carry a whole range of spare parts-everything you will ever need.
5. Milk bucket could be any capacity, could be stainless steel or transparent. (Customized)
6. Difference volatage motor to meeting different country using.
7. Different type milking machine to meeting respective usage,such vacuum pump type and piston pump type, blade vacuum pump and dry pump type, single bucket and double bucket, diesel engine type and gasoline type etc.
Engine Power (kW) : 0,55 kW
Rotating (rpm) : 1450 rpm
Voltage (V) : 220 V
Flow Rate (L/min) : 200-230
Palette Type : FIBER
Palette Size (mm) : 80 x 43 x 4.9
Tank Capacity (L) : 25L
Bucket Type : S/S
Bucket Volume : 40 Lt.
Cluster Weight (gr) : 2250 Gr.
Milk Claw Capacity : 2 x 240cc
Milk Hose : 2 x 225mm (25mm x 16mm)
Pulse Hose : 2 x 200mm (14mm x 7mm)
SILICONE LINERS
Application of milking machine:
The milking machine could be used for cow, sheep, donkey, camel and yak at the same time, just change the different milking cluster group.
Accessories: stainless steel pipeline,milk can, vacuum pump.
