Product Details:
|
| Productivity: | 10-12 Cow/h | Material: | Food Grade Stainless Steel |
|---|---|---|---|
| Product Name: | Portable Milking Machine | Warranty: | 12 Months |
| Used For: | Dairy Cattle | Use: | Cow Milking Machine |
| Voltage: | 110v/180v-240v/50-60HZ | Milk Bucket: | 2 Pcs |
| High Light: | Food Grade SS Portable Milking Equipment,Gasoline Engine Mobile Milking Machine,Food Grade SS Mobile Milking Machine |
||

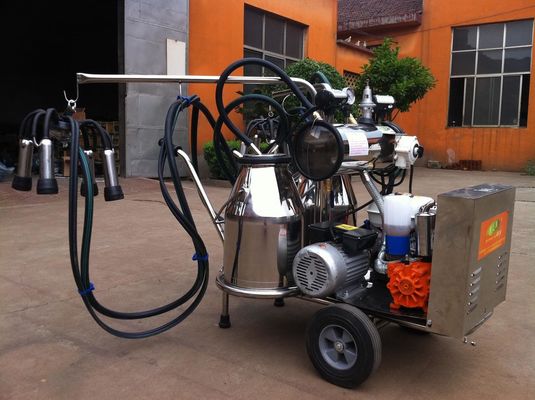

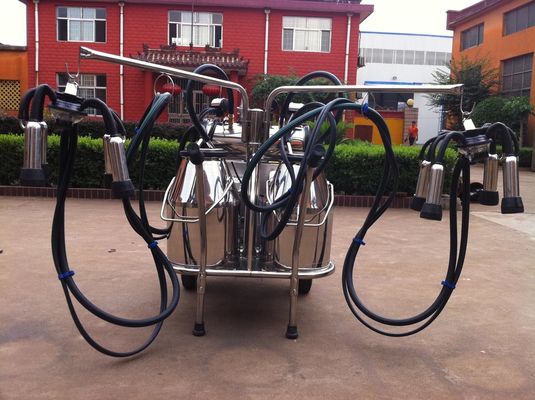

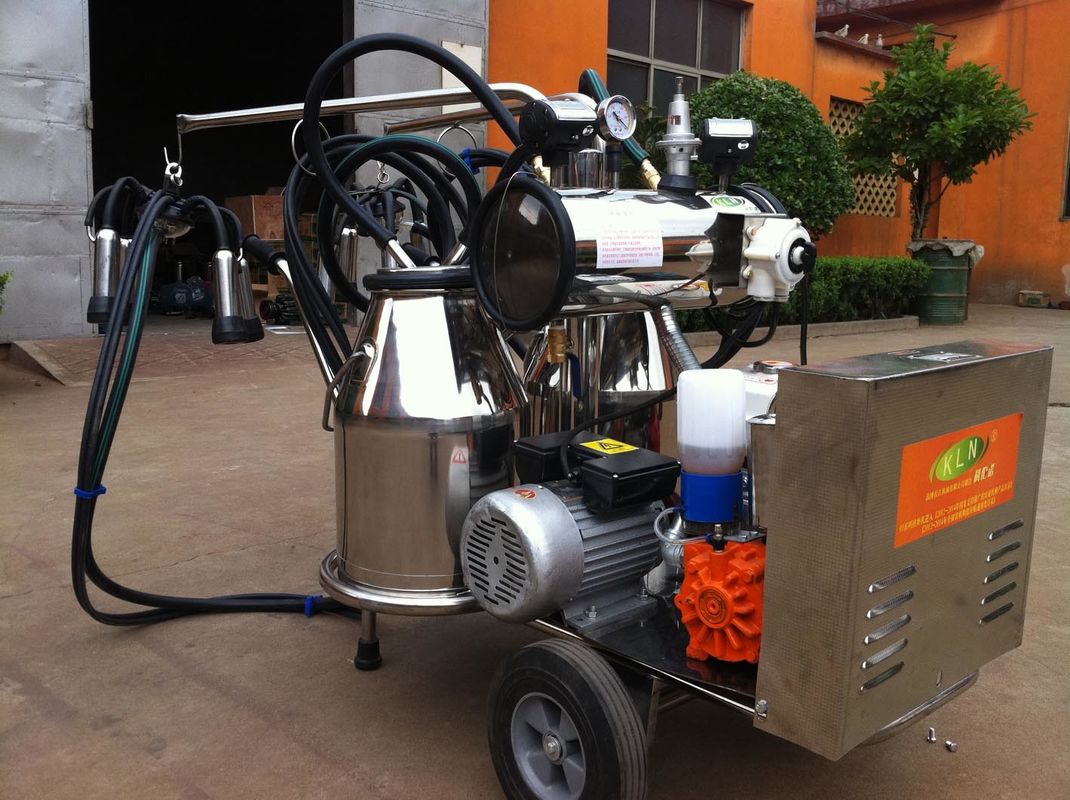

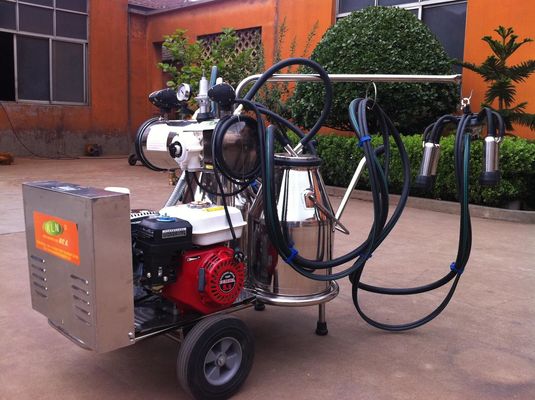

Stainless Steel Gasoline Engine Vacuum Pump Portable Milking Machine
Specification:
Movable milking machine is suitable for not big scale milking plant or farmer and replace the traditional manual milking and highly improve the milking efficiency and keep the milk health.
| Technical paramaters:9J series gasoline engine and electric milking machine | ||
| Model | 9J-I type | 9J-II type |
| Work vacuum | 50kpa | 50kpa |
| Pulsation form | Gas pulsation | Gas pulsation |
| Pulsation frequency | 60±3 rpm | 60±3 rpm |
| Pulsation ratio | 60:40 | 60:40 |
| Supporting power | 1.1KW(110V,220V) | |
| Vacuum pumping speed | 170L/min | 220L/min |
| Productivity Size Net Weight | 10~12cows/h 101*77*98cm 80kg | 20~24cows/h 101*77*98cm 95kg |
Milking machine features
1. Automatic cow goat milking machine Equipped with a mobile wheel, flexible movement, convenient milking.
2. Simple operation and maintenance, high quality and low price.
3.Use both electricity and oil.portable automatic cow milking machine is suitable for remote areas.Without electricity, we still enjoy your milking time.
4.Double trolley portable automatic cow milking machine unique design, easy to operate, easy to maintain, stable vacuum,
5.low noise, stable pulse frequency, small vacuum fluctuation, before and after milking gently, play a protective role, can improve the output.
Working principle: The principle of mechanical milking is to use the negative pressure to alternately open and close the inner sleeve of the teat by the frequency of the pulsator, thereby achieving the purpose of milking.
Introduction of company: Shandong Yuejiang Machinery Co., Ltd have grown up step by step through the 7 years development: bettering products, attending trade shows, building platforms, forming foreign trade teams, etc. Nowadays, our business scope expand gradually, and our products not only welcomed in Chinese market, also exported to more than 50 countries and areas.
Package and shipping: The main board is packed in wooden box, the bottom of the fuselage and the wooden box are fixed with iron wire, and the wooden box is fixed with a metal packing tape.
