Product Details:
|
| Certification: | ISO | Material: | SS304 |
|---|---|---|---|
| Condition: | New | Application: | COW |
| Product Name: | Portable Milking Machine | After-sales Service Provided: | Overseas Service Center Available |
| High Light: | 95kg Automatic Dairy Cow Milkers,ISO Cow Milk Sucking Machine,95kg Cow Milk Sucking Machine |
||

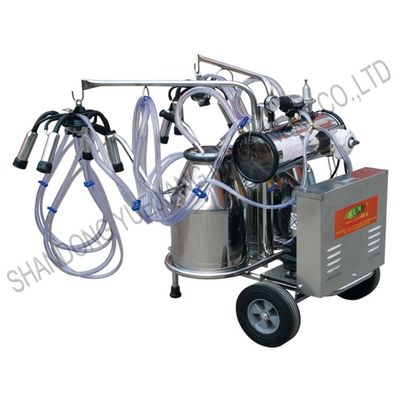

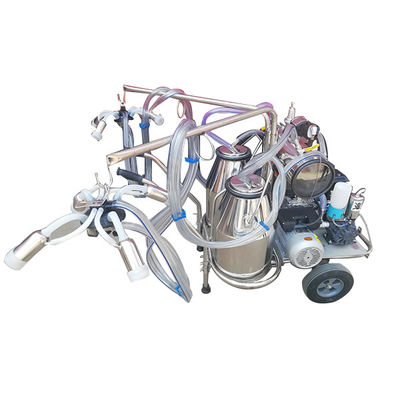

Vacuum pump portable milking machine
1. Product Introduction:
According to the number of barrels, Milking Machine can be divided into single-barrel Type and double-barrel Type.
Milking machine with single bucket can milk 10-12cows per hour, milking machine with two buckets can milk 20-24cows per hour,
Milking Machine has unique design, easy operation, easy maintenance and it can lower utility costs as well by milking soft with stable vacuum.
By milking machine, milking operator can triple their milking capacity and milk more cows in the same time than hand milking. Reduce milking time means you can expand your herd size and get more profit.
Mobile type cow sucking milk machine can be divided two type,one is single barrels ,another is double barrel. Flexibility, no space limitation, suitable small type cow farm , easy to operate,one person operating .
Parameter:
| Technical paramaters:9J series gasoline engine and electric milking machine | ||
| Model | 9J-I type | 9J-II type |
| Work vacuum | 50kpa | 50kpa |
| Pulsation form | Gas pulsation | Gas pulsation |
| Pulsation frequency | 60±3 rpm | 60±3 rpm |
| Pulsation ratio | 60:40 | 60:40 |
| Supporting power | 1.1KW(110V,220V) | |
| Vacuum pumping speed | 170L/min | 220L/min |
| Productivity Size Net Weight | 10~12cows/h 101*77*98cm 80kg | 20~24cows/h 101*77*98cm 95kg |
Feature: 1.With mobile wheel, flexible and convenient to move to milk.
2. Both operation and maintenance are simple.
3. Different voltage and motor to meet different countries to use.
4. Low noise and high milk production.
5. Saving labor and improving economic.
Application of milking machine: The portable milk machine could be used for cow, sheep, donkey, camel and yak at the same time, just change the different milking cluster group.
Accessories: Motor,Vacuum pump, bracket, milk bucket, surge tank, power switch, true air pressure valve, vacuum gauge, valve, pulsator, long pulsation tube, long milk tube, milk collector switch, milk collector, short pulsation tube, milk cup , inner sleeve, milk cup plug, drain valve
Working principle: The principle of mechanical milking is to use the negative pressure to alternately open and close the inner sleeve of the teat by the frequency of the pulsator, thereby achieving the purpose of milking.
Introduction of company: Shandong Yuejiang Machinery Co., Ltd with the rapid development of international trade, established foreign trade department in2012. Therefore, the Zibo Yuejiang Machinery Co., Ltd is not just trading company, but a company of integration of industry and trade. We have the abundant technical skills and test methods, all process strictly according to ISO 9001:2008 international quality control system and all goods passed the China Compulsory Certificate and CE certificate.
Package and shipping: The main board is packed in wooden box, the bottom of the fuselage and the wooden box are fixed with iron wire, and the wooden box is fixed with a metal packing tape.
