Product Details:
|
| Certification: | CE,ISO | Condition: | New |
|---|---|---|---|
| Warranty: | 1 Year | Productivity: | 10-12 Cow/h |
| Used For: | Dairy Cattle | Material: | Food Grade Stainless Steel |
| Feature: | High Effiency | Product Name: | Portable Milking Machine |
| High Light: | Two Bucket Portable Milking Machine,220L/Min Portable Milking Machine,220L/Min Goat Milking Machine |
||

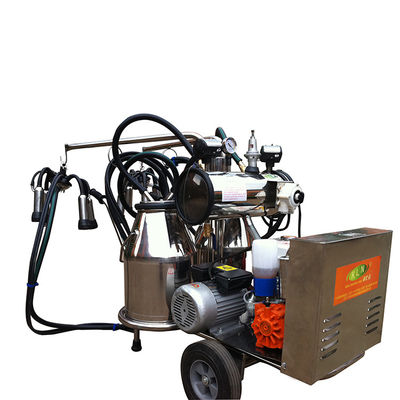

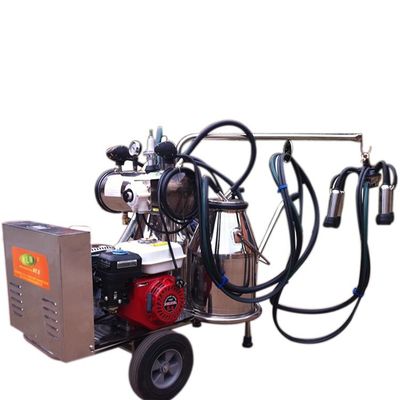

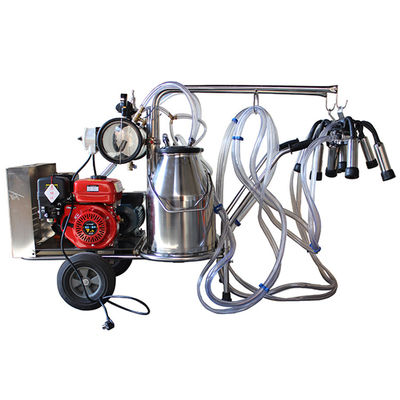

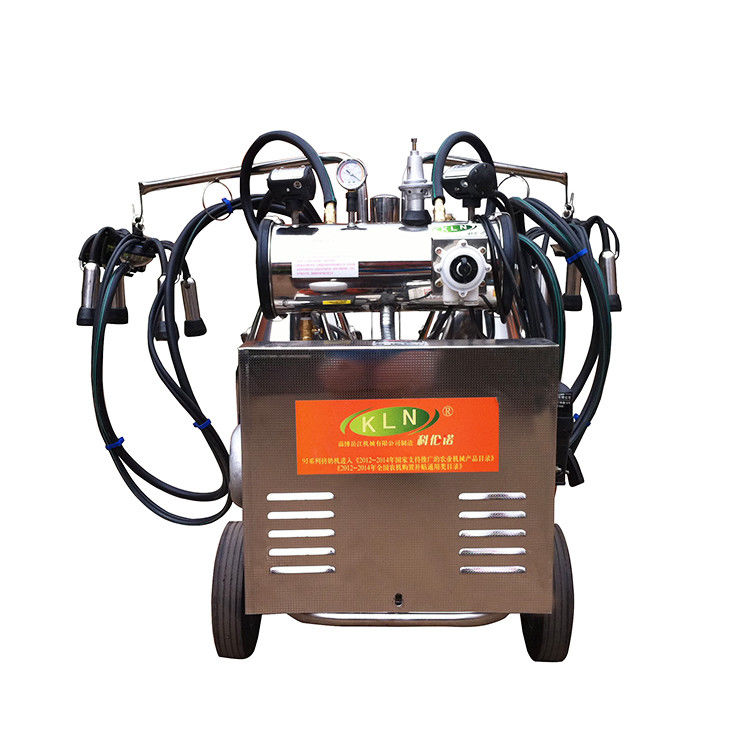

Two Bucket Oil And Electricity Cow Goat Portable Milking Machine
Specification:The gasoline engine and electric milking machine is a reliable portable machines and farm machinery used for small dairy farm and cow private investor . The portable milk machine could be used for cow, sheep, donkey, camel and yak at the same time. You can enjoy milking without electricity. Especially suitable for areas where electricity is scarce.
| Technical paramaters:9J series gasoline engine and electric milking machine | ||
| Model | 9J-I type | 9J-II type |
| Work vacuum | 50kpa | 50kpa |
| Pulsation form | Gas pulsation | Gas pulsation |
| Pulsation frequency | 60±3 rpm | 60±3 rpm |
| Pulsation ratio | 60:40 | 60:40 |
| Supporting power | 1.1KW(110V,220V) | |
| Vacuum pumping speed | 170L/min | 220L/min |
| Productivity Size Net Weight | 10~12cows/h 101*77*98cm 80kg | 20~24cows/h 101*77*98cm 95kg |
Feature: 1. Stainless steel crutch, durability and beauty.
2. Vane for vacuum pump imported from Germany makes it own perfect gas circle.
3. Light and flexible body which suit for small dairy farm.
Application of milking machine: The portable milk machine could be used for cow, sheep, donkey, camel and yak at the same time, just change the different milking cluster group.
Accessories: Motor,Vacuum pump, bracket, milk bucket, surge tank, power switch, true air pressure valve, vacuum gauge, valve, pulsator, long pulsation tube, long milk tube, milk collector switch, milk collector, short pulsation tube, milk cup , inner sleeve, milk cup plug, drain valve
4. Milk through gasoline engine when no electricity, you still can enjoy your milking time.
Working principle: The principle of mechanical milking is to use the negative pressure to alternately open and close the inner sleeve of the teat by the frequency of the pulsator, thereby achieving the purpose of milking.
Introduction of company: Shandong Yuejiang Machinery Co., Ltd is manufacturer of pasture equipment, who provides pasture management system and reliable after-sales service. Our company covers an area of more than 7000 square meters,and has eight production lines, including milking machine, stainless steel milk can, milk pasteurizer and rotary vane vacuum pump and so on.The vacuum pump is the core of the milking machine.The milking machine cannot be used when the vacuum pump fails.The vacuum pumps for our milking machines are made by our own company. We have more than 20 years' experience in this field, so we can assure you that our products are of high quality and the prices are reasonable.
Package and shipping: The main board is packed in wooden box, the bottom of the fuselage and the wooden box are fixed with iron wire, and the wooden box is fixed with a metal packing tape.
