Product Details:
|
| Name: | Milk Cooling Tank | Material: | Stainless Steel 304 |
|---|---|---|---|
| Usage: | Milk Cooling | Polish: | Mirror Polish |
| Weight: | 1500-3050kg | Voltage: | 220v/380v |
| High Light: | 2000l Bulk Milk Cooling Unit,1000l Bulk Milk Cooling Unit,Chiller bulk milk cooler 1000 ltr |
||

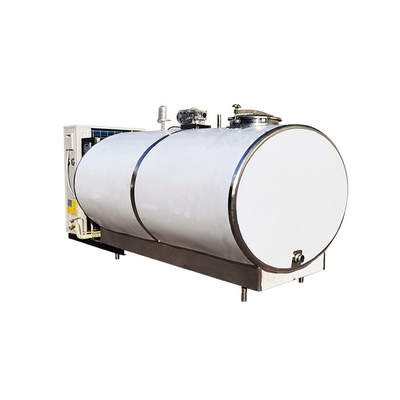

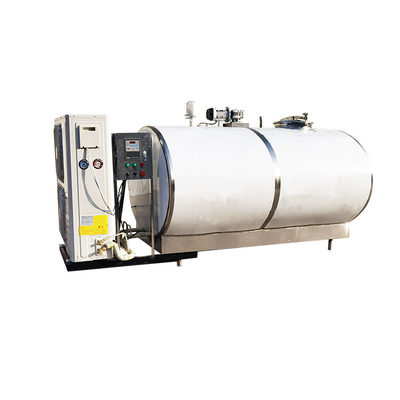

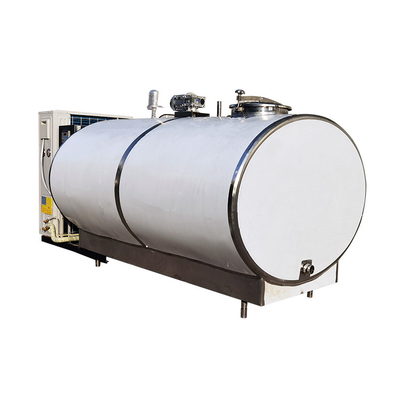

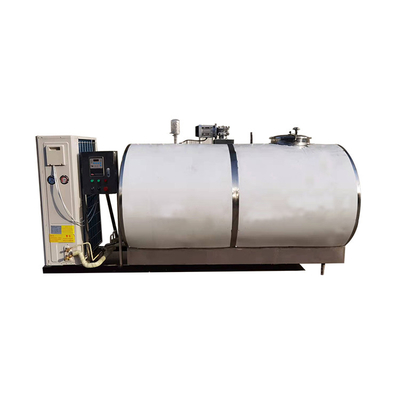

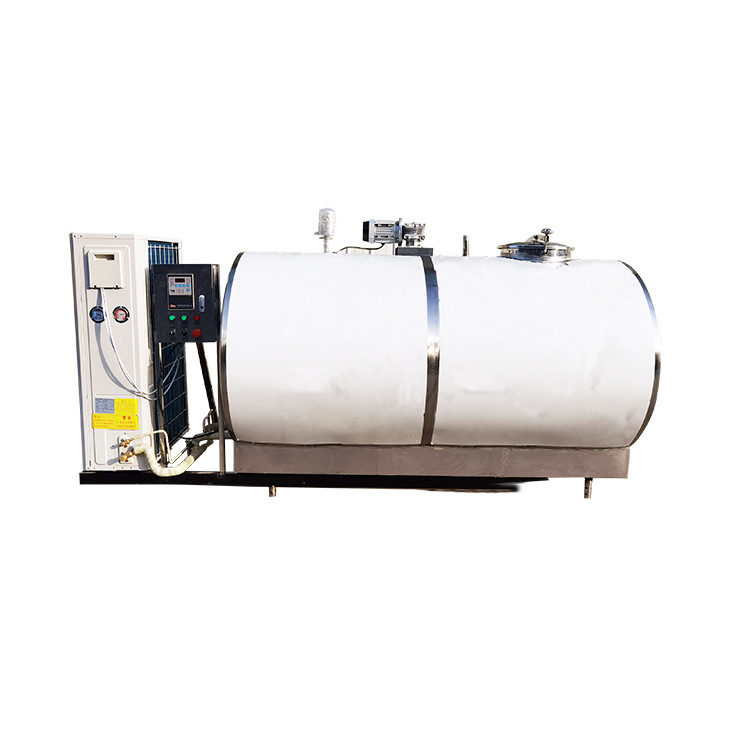

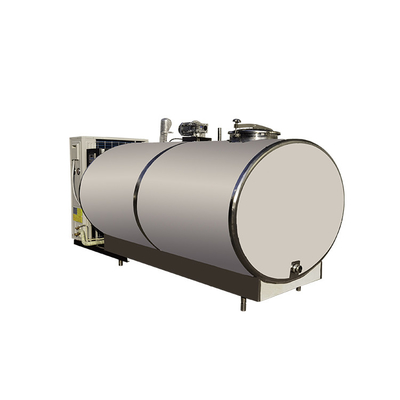

1000l raw chiller stainless steel 2000l bulk milk cooling tank price
Product Description:
This 550-12000L stainless steel fresh milk cooling tank system can cooling large area of the inside pot surface, utilizing the automatic computer control system to observe and operate, which can quickly lower the temperature to 4 and keep to this constant temperature, that prevent from the growth of the bacteria.
Parameter:
| VessalCapacity(L) | P.F(W) | REV | Matched power | Size(L*w*H) | Refrigerant | Power supply |
| 500 | 5322 | 25r/m | 3KW | 900*900*1600 | R404A/R22 | 380V/3/50Hz |
| 1000 | 8842 | 35r/m | 4.5KW | 2200*1350*1550 | R404A/R22 | 380V/3/50Hz |
| 1500 | 11244 | 35r/m | 5KW | 2200*1200*1750 | R404A/R22 | 380V/3/50Hz |
| 2000 | 13221 | 35r/m | 6KW | 3300*1500*1700 | R404A/R22 | 380V/3/50Hz |
| 2500 | 16221 | 35r/m | 7KW | 3700*1450*1500 | R404A/R22 | 380V/3/50Hz |
| 3000 | 16221 | 35r/m | 7KW | 3950*1500*1700 | R404A/R22 | 380V/3/50Hz |
| 4000 | 32442 | 35r/m | 14KW | 3950*1900*1850 | R404A/R22 | 380V/3/50Hz |
| 5000 | 32442 | 35r/m | 14KW | 4200*2100*2000 | R404A/R22 | 380V/3/50Hz |
| 6000 | 40000 | 35r/m | 14K/W | 4200*2100*2200 | R404A/R22 | 380V/3/50Hz |
| 8000 | 41688 | 35r/m | 19K/W | 5200*2200*2150 | R404A/R22 | 380V/3/50Hz |
| 10000 | 51360 | 35r/m | 23K/W | 6000*2200*2150 | R404A/R22 | 380V/3/50Hz |
| 12000 | 51360 | 35r/m | 23K/W | 6000*2200*2300 | R404A/R22 | 380V/3/50Hz |
Feature:
1.Cooling fast keeps milk fresh.
2.High cooling efficiency and low energy consumption can reduce use-cost.
3.Low noise with energy saving and environmental protection.
4.Stable performance and low failure rate, easy maintenance, simple operation and long working life.
Application:
Used as mixing tank, blending tank, stirred tank, agitating tank, etc. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Accessories: The 550-12000L stainless steel fresh milk cooling tank is mainly made of Compression Engine, Condenser, Evaporator, Water pump, Water tank, Fan and Motor.
Package and shipping:
All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
All accessories and spare parts will be packaged with separated box
After loaded into containers, all equipment will be well fixed to the containers
Introduction of company:
Shandong Yuejiang Machinery Co., Ltd with the rapid development of international trade, established foreign trade department in2012. Therefore, the Zibo Yuejiang Machinery Co., Ltd is not just trading company, but a company of integration of industry and trade. We have the abundant technical skills and test methods, all process strictly according to ISO 9001:2008 international quality control system and all goods passed the China Compulsory Certificate and CE certificate.
Certification: ISO9001,CE
