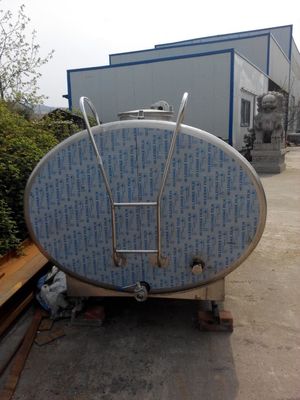

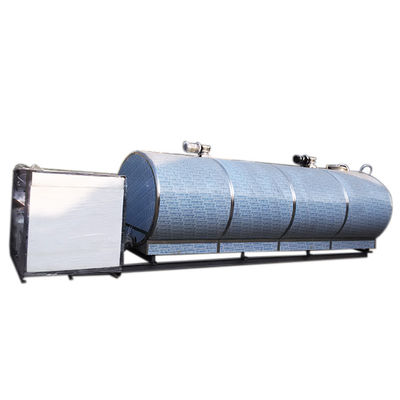

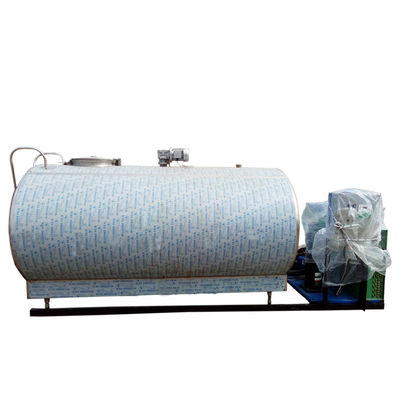

Corrosion Resistance 8000L Stainless Steel Milk Cooler with Food Grade Material

Milk cooling tank Features:

1. Stainless steel body

2. Automatic constant temperature

3. Mix evenly

4. Quality motor

5. Free temperature control

6. Easy to clean

1. Complete machine form: Oval horizontal, conjoined installation.

2. Refrigeration temperature: secondary, inject milk with 50% of rated capacity and cool it from 35 ℃ to 4 ℃ for less than 3 hours.

3. Compressor: American scroll wheel compressor, 3 tons, 7 pieces per set; 5 tons, 7 pieces for each set, 2 sets and 14 pieces in total; 8 tons, 8 pieces per set, 2 sets and 16 pieces in total.

4. Mixing motor: power 750 W, speed 35 rpm.

5. Evaporator: spot welding technology

6. Can body head: disposable machine head with arc radius r of 30mm.

7. Condenser fan: one 70m2 3-ton tank suction condenser; 5T tank suction condenser 70m2 multiplied by 2 sets; 8 ton tank suction condenser 100 square times 2 sets;

8. Operating system: microcomputer controller, which automatically controls the operation of the whole system.

9. Agitator: horizontal agitator is adopted, with welded down pressure mixing blade, which is not easy to form milk scale; The microcomputer controls the mixer to ensure the uniformity of milk temperature and fat in the tank.

10. Cleaning method: 1 3T rotary chip CIP cleaning ball, 2 5T rotary chip CIP cleaning balls and 3 8t rotary chip CIP cleaning balls. They can be semi-automatic or manual cleaned, saving time and labor, and there is no dead corner of cleaning.

Product application

The main function of the refrigeration tank is to preserve raw milk products before processing. If the freshly squeezed milk is stored at room temperature, it is easy to break and put it in a container with relatively low temperature,The model and output of the refrigeration tank correspond to 1000 kg of milk. The refrigeration tank type cools the milk through a compressor. The equipment is made of SUS304 stainless steel, Long service life, no corrosion, no rust, thick material, firm tank body, treatment process for mirror polishing, external wire drawing, smooth inner wall, convenient cleaning, neat skin, beautiful and generous.

One machine is multi-purpose and widely used. It refrigerates and stores fresh milk to keep the raw milk in good condition. Prevent bacterial reproduction and store other liquid materials.

Packing & Delivery

1) Before package and delivery, we will test the machine seriously and guarantee the machine runs stably with high accuracy.
2) After inspection, our machines are wrapped by plastic and then carefully packed in wooden cases.
3) Then the whole set milking parlor will be put in one 20 feet or 40 feet container.

Company Profile

Our company is specialized in providing comprehensive design and planning scheme and perfect cattle management system and reliable after-sales service for the pasture.It is a full range of farm products supplier.Yuejiang has been committed to the design and production of various types of rotary type, parallel type, fishbone milking machine, for large and small pastures to provide a perfect milking scheme;Around the pasture also provides other supporting products, cattle neck clip;Stay in bed for a bull;Cold storage tank for fresh milk;Pasteurization tank;Whole ration feed mixer;Solid-liquid separator for poultry and livestock and other ranch parts;Milking and fast release type, fishbone type scaffolding and special vacuum pump for our company independent production and manufacturing.

FAQ

1. Factory price or trade price?

We are manufacturer, all of the price is factory price.

2. How to ensure the quality of final produce?

We will specially test before EX work, such as materials,smooth finish, and pressure test for produce.

3.Pre-sale service

Provide free production, process and technical guidance.

We can provide the qualification certificate and drawings of the company.

We can also customize products according to customers' needs.

4.After-sales service

We provide long - term after - sale service.

Since the price of our equipment is FOB, door-to-door service charge is not included.Therefore, if necessary, we can designate our technicians to adjust the machine, and you will pay for the airfare, visa, accommodation and labor costs.Or you can send your technicians to our company to learn technology.

At the same time, as we have a special after-sales service hotline, you can call or email any related questions.Or you can communicate online to solve problems.
