Product Details:
|
| Power: | 1.1kw | Usage: | Milking Machine |
|---|---|---|---|
| Structure: | Rotary Vane | Pressure: | Low Pressure |
| Application: | Milk Equipment | Material: | Cast Iron |
| High Light: | 220L Rotary Vane Vacuum Pump,Cast Iron Rotary Vane Vacuum Pump,220L vane type vacuum pump |
||

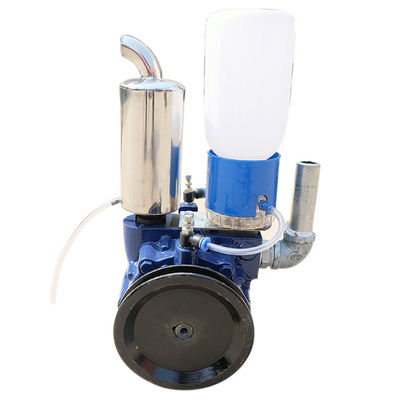

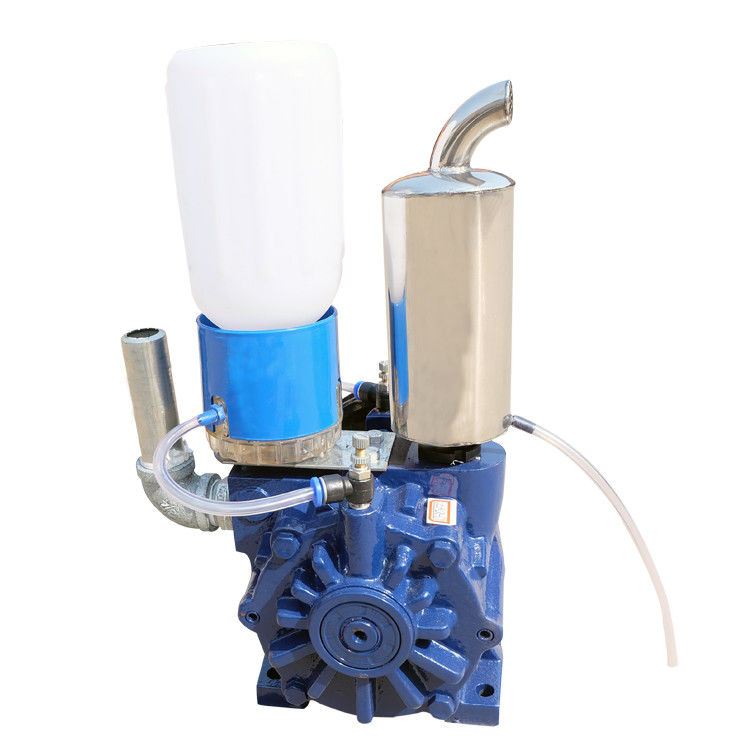

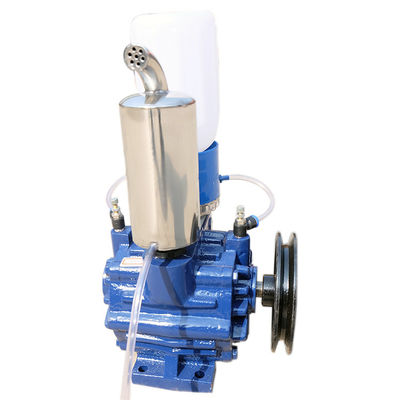

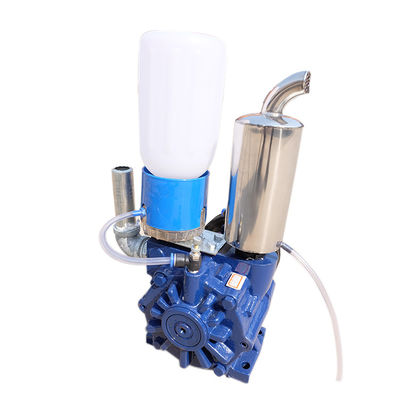

Milking machine 220L pumping speed cast iron rotary vane vacuum pump
1. Rotary vane vacuum pump introduction:
Milking machine 220L pumping speed cast iron rotary vane vacuum pump are mainly include: rotary vane, rotor, pump body, cap, silencer, oil pipeline, oil pot set, throttle valve etc.
Milking machine 220L pumping speed cast iron rotary vane vacuum pump provide vacuum to milking machine, which can make the machine suck milk well, rotary vane vacuum pump is the core part for milking machine.
2. Vacuum pump technical parameters:
| Model |
Pumpingspeed L/min |
Power (kw) |
Noise dB |
Ultimate vacuum Kpa |
Speed r/min |
| XP220 | 220 | 1.1 | ≤50 | ≤90 | 1440 |
| XP1200 | 1200 | 4 | ≤70 | ≤90 | 1440 |
| XP2100 | 2100 | 5.5 | ≤70 | ≤90 | 1440 |
| XP2800 | 2800 | 7.5 | ≤70 | ≤90 | 1440 |
3. Rotary vane vacuum pump quality:
1). The pump and rotor are made by nodular cast iron, which the performance is similar with stainless steel, very stable and stronger when use it.
2). The rotor and the shaft is one-step molding.
3). The rotary vane is imported from Germany with very high quality.
4. Mini electric vacuum pump application:
1) 220L pumping speed rotary vane vacuum pump is suitable for removable milking machines.
2) XP220 type cast iron rotary vane vacuum pump can take 2-4cows at a time.
3) Like xp220 series used for vacuum pump type or gasoline engine type milking machine.
5. Rotary vane vacuum pump feature:
1) Mini vacuum pump owns perfect gas circle.
2) Comfortable appearance design.
3) Equip with fuel valve so that customers can control oil wastage.
4) Reasonable silencer design reduces noise.
6. Rotary vane vacuum pump package:
1). Wooden case to pack the pump.
2). Use bubble bag to pack the pump.
3). Reinforce outer case by iron packing belt.
7. Related machines:
1) 1200L vacuum pump:
Function: it used for large milking parlor
2) Vacuum pump type milking machine:
