Product Details:
|
| Voltage: | 220V/380V | Condition: | New |
|---|---|---|---|
| Capacity: | 500-10000L | Application: | Food,juice,milk |
| Function: | Cooling Liquid | Agitator Speed: | 36(24)r/Min |
| Power: | 380V/50HZ Or Made To Order | Name: | 200L/300L/500L Vertical Milk Cooling Tank |
| Highlight: | SUS304 Milk Cooling Tank 500 Ltr,Customized Milk Cooling Tank 500 Ltr,500 Ltr Milk Juice Chiller |
||

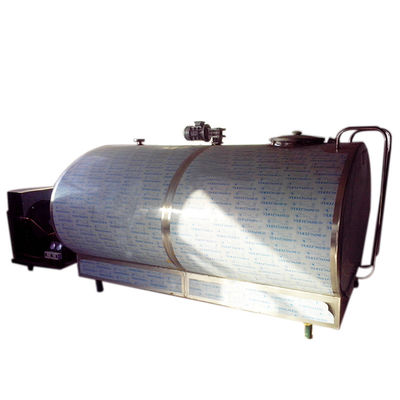

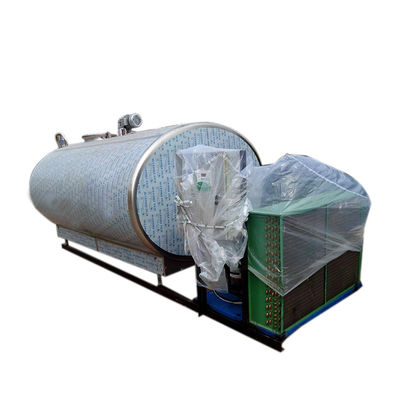

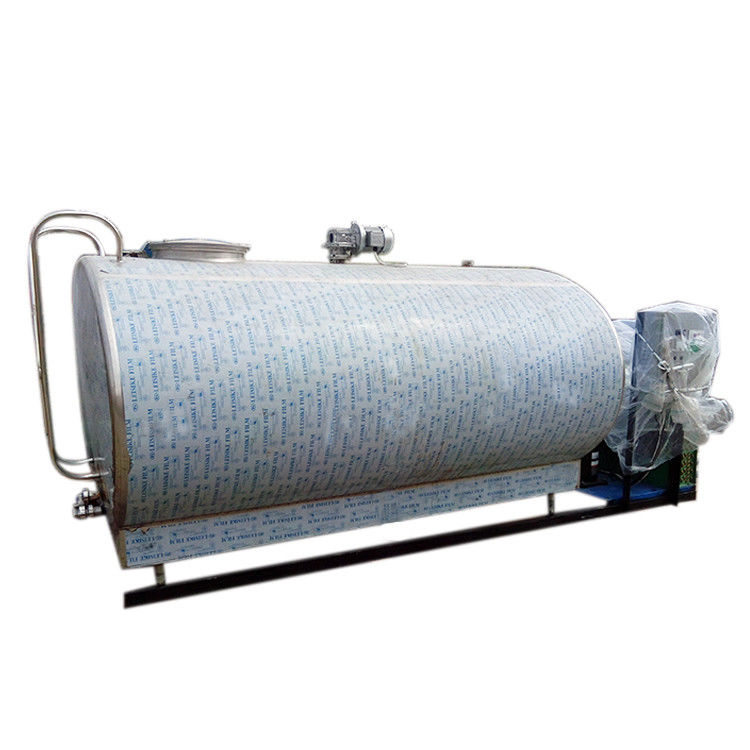

SUS304 stainless steel Factory customized Milk juice chiller milk cooling tank
Product Description:
Milk cooling tank adopted international advanced technology. Large-area cooling by round-type and straightwalled, through automatic control systems,intuitive operation in one step, so that the raw milk in milk cooler tank rapidly reduced to the required temperature4~5°c, and keep milk storage tank prevent multiplication of bacteria and maintain the raw milk in A-class state.
Features: milk cooling tank milk cooling tank milk cooling tank milk cooling tank
1) High cooling efficiency and low energy consumption can reduce use-cost.
2)Low noise with energy saving and environmental protection.
3)Stable performance and low failure rate, easy maintenance, simple operation and long working life.4)Fast refrigerated effect keep milk fresh.
5)Heat preservation use the polyurethane integral foaming technology.
6)American COPELAND compressor guarantee the excellent refrigerated effect.
Parameter:
| P.F(W) | REV | Matched power | Size(L*w*H) | Refrigerant | Power supply | |
| 500 | 5322 | 25r/m | 3KW | 900*900*1600 | R404A/R22 | 380V/3/50Hz |
| 1000 | 8842 | 35r/m | 4.5KW | 2200*1350*1550 | R404A/R22 | 380V/3/50Hz |
| 1500 | 11244 | 35r/m | 5KW | 2200*1200*1750 | R404A/R22 | 380V/3/50Hz |
| 2000 | 13221 | 35r/m | 6KW | 3300*1500*1700 | R404A/R22 | 380V/3/50Hz |
| 2500 | 16221 | 35r/m | 7KW | 3700*1450*1500 | R404A/R22 | 380V/3/50Hz |
| 3000 | 16221 | 35r/m | 7KW | 3950*1500*1700 | R404A/R22 | 380V/3/50Hz |
| 4000 | 32442 | 35r/m | 14KW | 3950*1900*1850 | R404A/R22 | 380V/3/50Hz |
| 5000 | 32442 | 35r/m | 14KW | 4200*2100*2000 | R404A/R22 | 380V/3/50Hz |
| 6000 | 40000 | 35r/m | 14K/W | 4200*2100*2200 | R404A/R22 | 380V/3/50Hz |
| 8000 | 41688 | 35r/m | 19K/W | 5200*2200*2150 | R404A/R22 | 380V/3/50Hz |
| 10000 | 51360 | 35r/m | 23K/W | 6000*2200*2150 | R404A/R22 | 380V/3/50Hz |
| 12000 | 51360 | 35r/m | 23K/W | 6000*2200*2300 | R404A/R22 | 380V/3/50Hz |
Application:
Accessories:
The 550-12000L stainless steel fresh milk cooling tank is mainly made of Compression Engine, Condenser, Evaporator, Water pump, Water tank, Fan and Motor.
Package and shipping:
1) Before package and delivery, we will test the machine seriously and guarantee the machine runs stably with high accuracy.
2) After inspection, our machines are wrapped by plastic and then carefully packed in wooden cases.
3) Then the whole set milking parlor will be put in one 20feet or 40 feet container.
