Product Details:
|
| Processing Types: | Complete Processing Line | Usage: | Dairy Product Production Line |
|---|---|---|---|
| Function: | Industrial Milk Production | Raw Material: | Fresh Liquid Milk |
| Voltage: | 380V | Weight: | 100kg-5000kg |
| Power(w): | 1.5-24kw | Material: | SUS304 |
| High Light: | Refrigeration Units Milk Cooling Tank,Electrical Control Milk Cooling Tank,Electrical Control milk cooling unit |
||

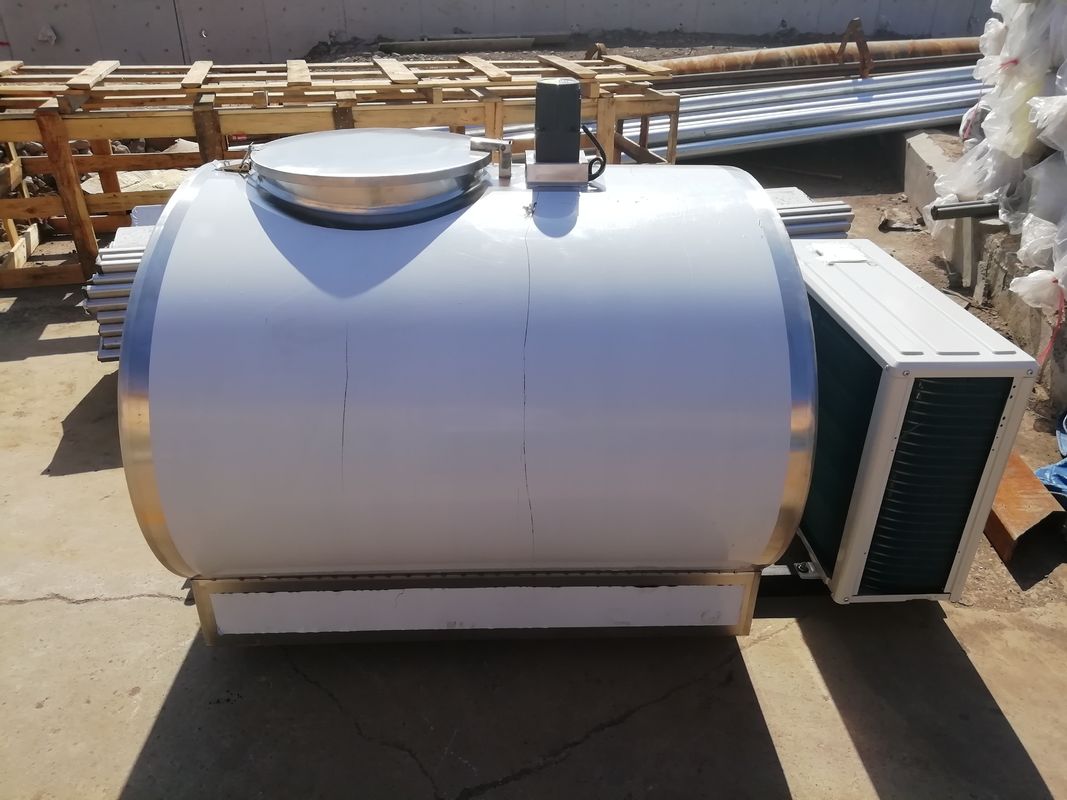

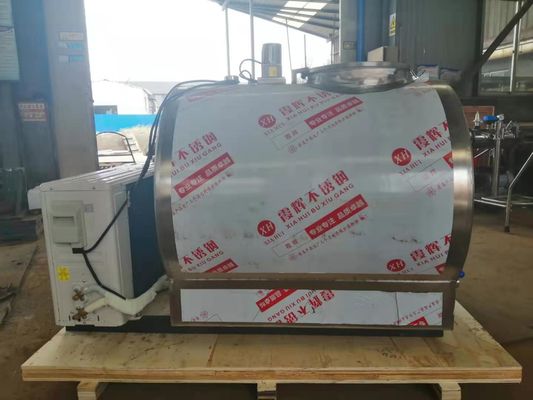

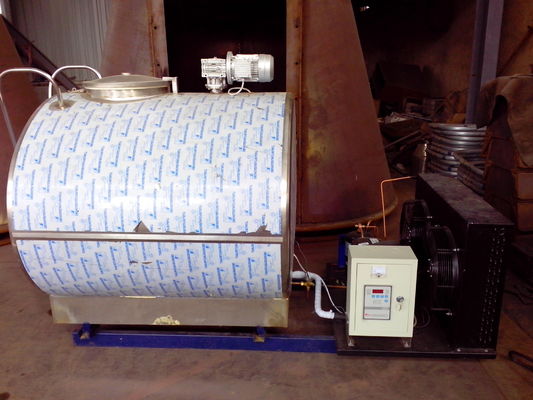

refrigeration units milk cooling machine stainless steel milk cooling tank
Milk cooling tank composed of refrigeration units and storage tank. Tank body made of high quality 304 stainless steel (food grade); insulation layer in tank use polyurethane foam one time forming; compressor unit using the most advanced U.S. Copel and flexible scroll compressor. High cooling efficiency and low energy consumption can reduce use-cost.
Milk cooling tank adopted international advanced technology. Large-area cooling by round-type and straightwalled, through automatic control systems,intuitive operation in one step, so that the raw milk in milk cooler tank rapidly reduced to the required temperature4~5°c, and keep milk storage tank prevent multiplication of bacteria and maintain the raw milk in A-class state.
| VessalCapacity(L) | P.F(W) | REV | Matched power | Size(L*w*H) | Refrigerant | Power supply |
| 500 | 5322 | 25r/m | 3KW | 900*900*1600 | R404A/R22 | 380V/3/50Hz |
| 1000 | 8842 | 35r/m | 4.5KW | 2200*1350*1550 | R404A/R22 | 380V/3/50Hz |
| 1500 | 11244 | 35r/m | 5KW | 2200*1200*1750 | R404A/R22 | 380V/3/50Hz |
| 2000 | 13221 | 35r/m | 6KW | 3300*1500*1700 | R404A/R22 | 380V/3/50Hz |
| 2500 | 16221 | 35r/m | 7KW | 3700*1450*1500 | R404A/R22 | 380V/3/50Hz |
| 3000 | 16221 | 35r/m | 7KW | 3950*1500*1700 | R404A/R22 | 380V/3/50Hz |
| 4000 | 32442 | 35r/m | 14KW | 3950*1900*1850 | R404A/R22 | 380V/3/50Hz |
| 5000 | 32442 | 35r/m | 14KW | 4200*2100*2000 | R404A/R22 | 380V/3/50Hz |
| 6000 | 40000 | 35r/m | 14K/W | 4200*2100*2200 | R404A/R22 | 380V/3/50Hz |
| 8000 | 41688 | 35r/m | 19K/W | 5200*2200*2150 | R404A/R22 | 380V/3/50Hz |
| 10000 | 51360 | 35r/m | 23K/W | 6000*2200*2150 | R404A/R22 | 380V/3/50Hz |
Pre-sales services
* Any concerns of our machine by email/phone will be replied ASAP within 24 hours
* According to the customers’ requirements and circumstance to make the best design
* Cost/benefit analysis
* To support factory layout
In the sale of services
* We are in charge of installing,debugging and training
* Technical guidance of frequently asked questions
After-sales service
* One year guarantee for whole machine except of quick-wear part
* 24 hours technical support by email/phone
* Calling, network or door-to-door service
Stainless Steel milk cooling tank is a kind of metal storage tank, which is mainly used to store food and medicine, and widely used for storage of wine and dairy products. Stainless Steel milk cooling tank is more widely used in industry than other materials. Compared with other materials, Stainless Steel milk cooling tank also has the characteristics of corrosion resistance,good sealing, strong precipitation and good cleaning.
It is an ideal storage and cooling equipment for milk collection stations, meadows and units specializing in farming milk cows.The preservation temperature ranges from 4 to 40oC and volume from 500 to 10,000 liters.
All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
All accessories and spare parts will be packaged with separated box
After loaded into containers, all equipment will be well fixed to the containers
Shandong Yuejiang Machinery Co., Ltd is manufacturer of pasture equipment, who provides pasture management system and reliable after-sales service.We pay attention to build high-quality products platform for users to provide reliable service. We have a person responsible for the after-sales service of products, you can contact us at any time if you have any questions.Our company has a full range of products, if you need other ranch products, you can contact us, we can assure you that our products quality is good, the price is reasonable.
Certification: ISO9001,CE
