Product Details:
|
| Warranty: | 1 Year | Voltage: | 220V/380V |
|---|---|---|---|
| Dimension(l*w*h): | Customized | After-sales Service Provided: | No Overseas Service Provided |
| Power(w): | Variable,2.2KW | Material: | SUS304/316L |
| Capacity: | 500-10000L | Application: | Food,juice,milk,beverage |
| High Light: | 3000 Liter Milk Freezer Tank,2.2KW Milk Freezer Tank,3000 Liter Milk Storage Tank |
||

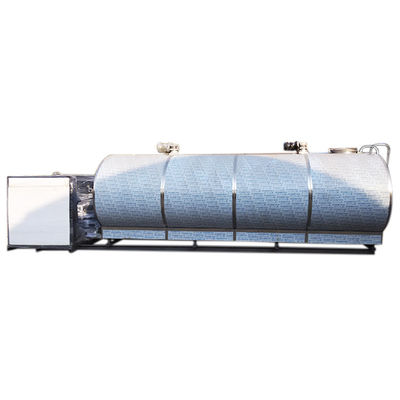

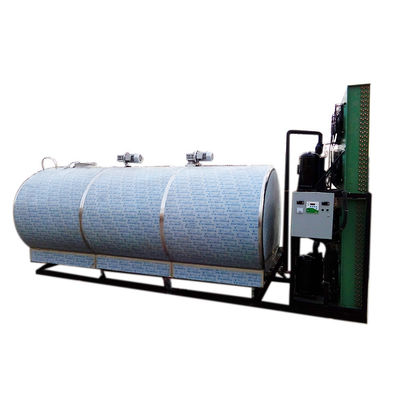

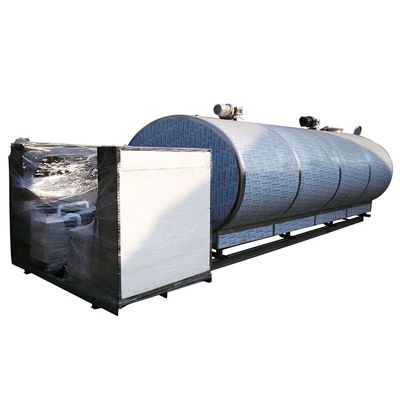

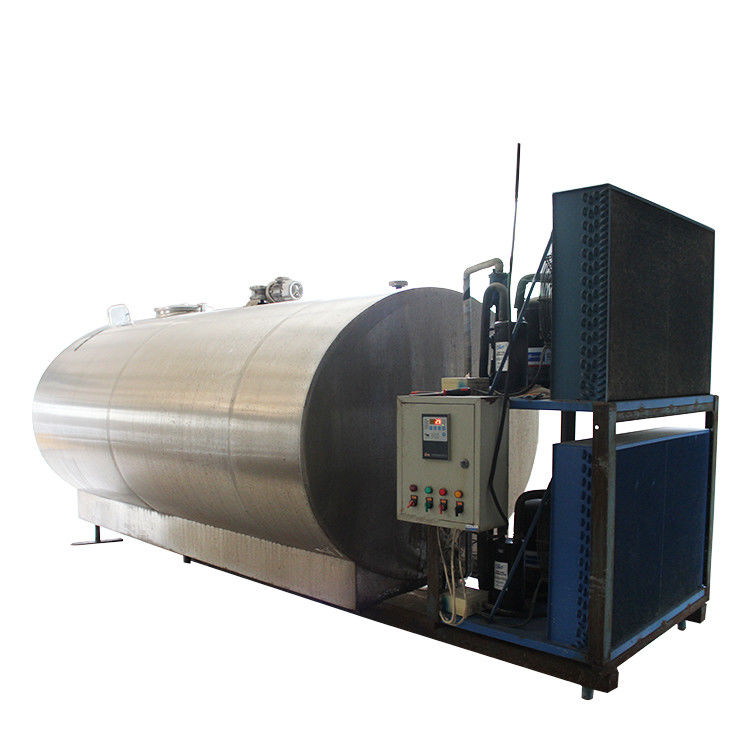

storage transport silo stainless steel small 3000 liter milk cooling tank
The space between the outer tank and the inner tank is isolated with polyurethane foam. In case of a power failure with an outside temperature of 30°C, the content of the tank will warm up only 1°C in 24 hours.To facilitate an adequate and rapid cooling of the entire content of a tank, every tank is equipped with at least one agitator. Stirring the milk ensures that all milk inside the tank is of the same temperature and that the milk stays homogeneous.
| VessalCapacity(L) | P.F(W) | REV | Matched power | Size(L*w*H) | Refrigerant | Power supply |
| 500 | 5322 | 25r/m | 3KW | 900*900*1600 | R404A/R22 | 380V/3/50Hz |
| 1000 | 8842 | 35r/m | 4.5KW | 2200*1350*1550 | R404A/R22 | 380V/3/50Hz |
| 1500 | 11244 | 35r/m | 5KW | 2200*1200*1750 | R404A/R22 | 380V/3/50Hz |
| 2000 | 13221 | 35r/m | 6KW | 3300*1500*1700 | R404A/R22 | 380V/3/50Hz |
| 2500 | 16221 | 35r/m | 7KW | 3700*1450*1500 | R404A/R22 | 380V/3/50Hz |
| 3000 | 16221 | 35r/m | 7KW | 3950*1500*1700 | R404A/R22 | 380V/3/50Hz |
| 4000 | 32442 | 35r/m | 14KW | 3950*1900*1850 | R404A/R22 | 380V/3/50Hz |
| 5000 | 32442 | 35r/m | 14KW | 4200*2100*2000 | R404A/R22 | 380V/3/50Hz |
| 6000 | 40000 | 35r/m | 14K/W | 4200*2100*2200 | R404A/R22 | 380V/3/50Hz |
| 8000 | 41688 | 35r/m | 19K/W | 5200*2200*2150 | R404A/R22 | 380V/3/50Hz |
| 10000 | 51360 | 35r/m | 23K/W | 6000*2200*2150 | R404A/R22 | 380V/3/50Hz |
Pre-sales services
* Any concerns of our machine by email/phone will be replied ASAP within 24 hours
* According to the customers’ requirements and circumstance to make the best design
* Cost/benefit analysis
* To support factory layout
In the sale of services
* We are in charge of installing,debugging and training
* Technical guidance of frequently asked questions
After-sales service
* One year guarantee for whole machine except of quick-wear part
* 24 hours technical support by email/phone
* Calling, network or door-to-door service
Used as mixing tank, blending tank, stirred tank, agitating tank, etc. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
All accessories and spare parts will be packaged with separated box
After loaded into containers, all equipment will be well fixed to the containers
Shandong Yuejiang Machinery Co., Ltd is manufacturer of pasture equipment, who provides pasture management system and reliable after-sales service.We pay attention to build high-quality products platform for users to provide reliable service. We have a person responsible for the after-sales service of products, you can contact us at any time if you have any questions.Our company has a full range of products, if you need other ranch products, you can contact us, we can assure you that our products quality is good, the price is reasonable.
Certification: ISO9001,CE
