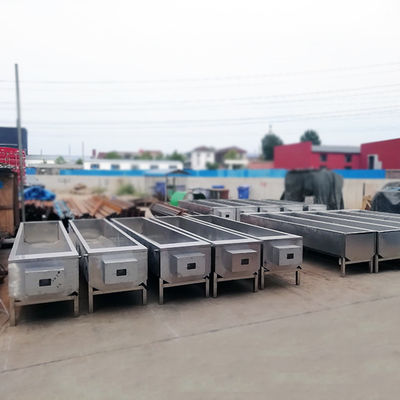

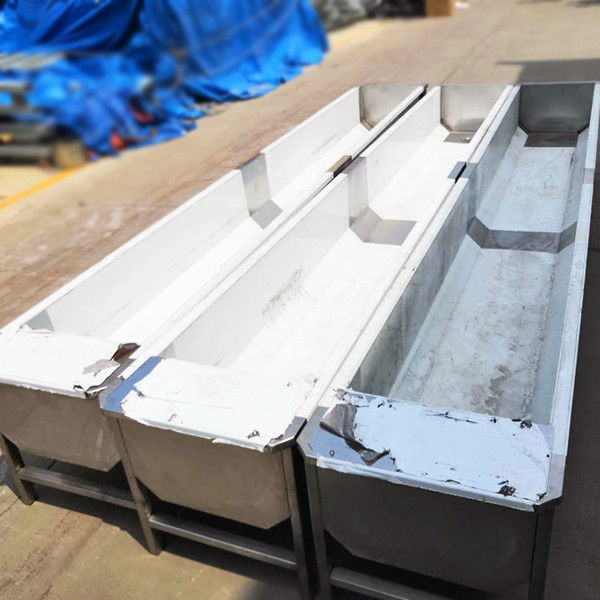

1.5KW 1m Animal Drinking Trough Stainless Steel Water Trough

Stainless Steel 304 Material Automatic Water Animals Drinking Trough

Introduction to drinking trough

1. A drinking trough is set in the cowshed. The capacity of the drinking trough is determined according to the size and breeding scale of the cowshed. The water pressure entering the house must be greater than 0.2Mpa. All bed-ridden cow houses should be equipped with a drinking trough. , The drinking trough is a stainless steel structure or a special drinking fountain.

2. The water tank is equipped with a reversible device, and when the water quality in the water tank deteriorates, it can be dumped manually.

3. With automatic water inlet device and independent floating ball valve, it can automatically replenish water to the water tank when unattended, and the designed floating ball valve and water tank are separated by wire mesh to ensure that the water inlet will not be blocked by dirt.

Number and location of drinking troughs

In terms of the length of the drinking trough, about 8 cm of drinking trough space is required for each cow to ensure that 15% of the cows in the herd can drink. Where the water troughs are installed, there should be at least 2 drinking troughs for each cattle herd, with a maximum interval of 25 meters. In addition, ensure that there is enough space near the drinking trough, because cows like to drink together. In general, it is recommended to have a space of 4 to 5 meters around the drinking trough to allow the cows to move freely.

Drinking trough parameters

Drinking trough advantages

Automatic heating drinking troughs for dairy cows, automatic drinking water equipment for fattening cattle, all pipes of the new drinking troughs for cattle are made of stainless steel to ensure that the water pipes are not rusty and the quality of drinking water is guaranteed. The water inlet valve has a large amount of water and automatically replenishes water. There is an automatic water inlet switch and a water level control valve to ensure that the water level in the drinking trough will never drop.

Electric heating drinking trough

The heating plate adopts 220V alternating current, and the electric heating plate is used for heating. The electric heating plate is equipped with a leakage protection device and a ground connection to ensure the safety of livestock. The thermostat monitors the water temperature in the tank at any time. Our company has done experiments, and the water temperature in the tank reaches 17 degrees in an external environment of minus 27 degrees. Then in the case of cattle drinking water, the water source is constantly replenished, and the water temperature in the tank can be maintained at about 10 degrees.

Drinking trough features

1. The new thermal insulation drinking fountain is an efficient, economical and environmentally friendly drinking water equipment for farms, suitable for cattle, horses, sheep and other livestock.

2. This product is antifreeze and heat preservation in winter, heatstroke prevention and cooling in summer, environmental protection and water saving, which can reduce animal diseases due to water sources, increase milk production of cows, and improve the quality of raw milk.

3. Specifications: Product size: 1000*680*550; capacity: 80L; net weight: 40kg; water intake: 80L/min; antifreeze temperature: -30 degrees.

4. In winter, it can effectively resist the low temperature of minus 30 degrees, prevent the phenomenon of freezing and frost, and ensure that the livestock can drink the water of 3-5 degrees. Livestock can drink water freely, effectively preventing livestock from affecting their health and production due to insufficient drinking water and unclean water, and greatly improving the production efficiency of the pasture. In summer, it can effectively isolate the high temperature, and livestock can drink clean and cool water at 8-10 degrees Celsius. It is one of the most effective and economical heatstroke prevention and cooling measures, which can effectively reduce the impact of heat stress on dairy cows. (Put a proper amount of ice cubes in the drinking fountain, the effect is better)
