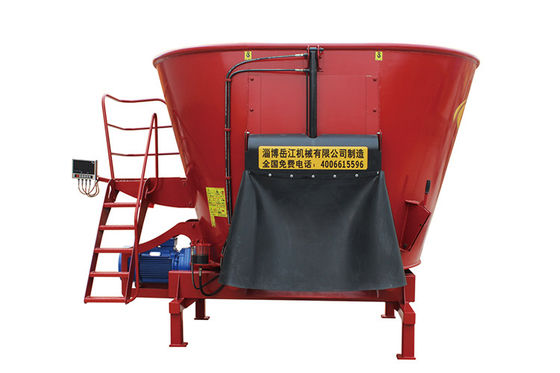

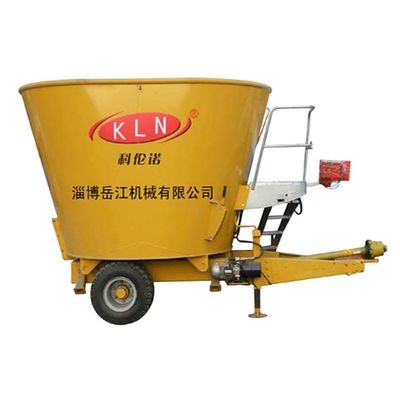

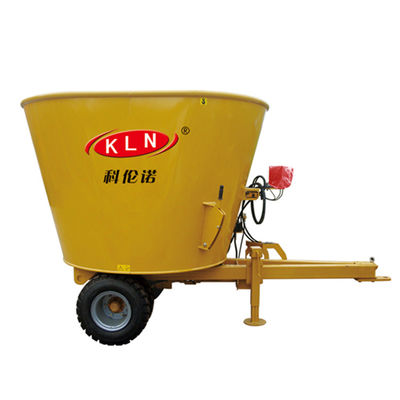

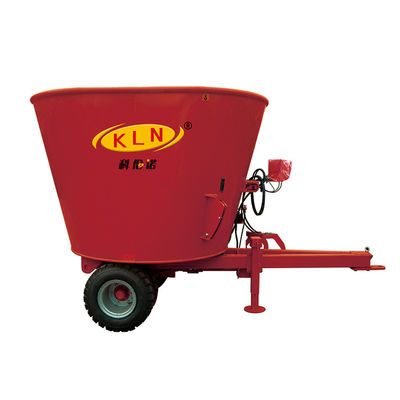

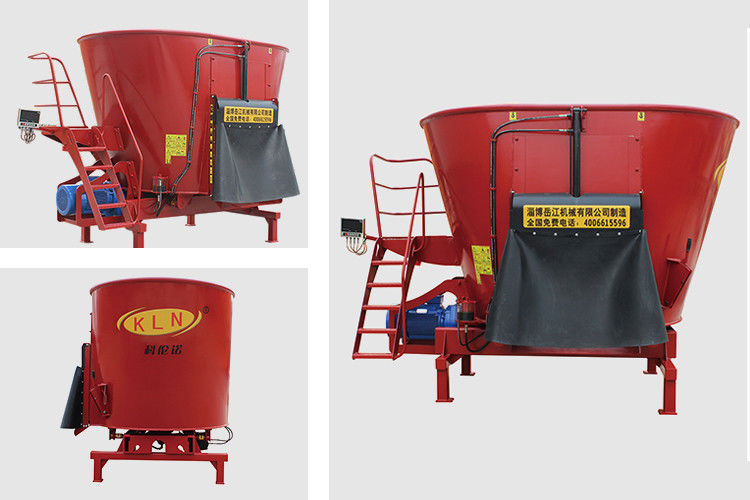

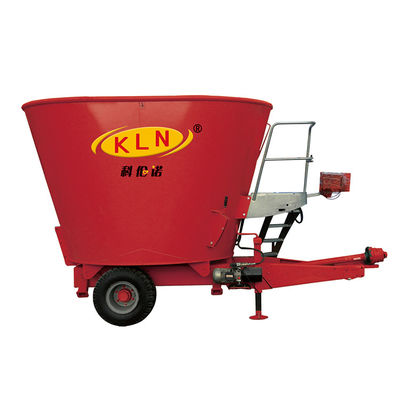

Moveable 4 Cbm TMR Mixer Machine Manganese Steel

Moveable 4 Cbm TMR Mixer Machine Manganese Steel
Moveable 4 Cbm TMR Mixer Machine Manganese Steel Moveable 4 Cbm TMR Mixer Machine Manganese Steel Moveable 4 Cbm TMR Mixer Machine Manganese Steel Moveable 4 Cbm TMR Mixer Machine Manganese Steel Moveable 4 Cbm TMR Mixer Machine Manganese Steel Moveable 4 Cbm TMR Mixer Machine Manganese Steel

Large Image :  Moveable 4 Cbm TMR Mixer Machine Manganese Steel

Product Details:
Place of Origin: China
Brand Name: KLN
Certification: CE/ISO
Model Number: 9FL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 8500-15000 dollars/set
Packaging Details: load in container
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30 sets/month

Moveable 4 Cbm TMR Mixer Machine Manganese Steel

Description
Color: Red Or Yellow Item: TMR Mixer Machine
Material: Manganese Steel After Sale Service: Video
Warranty: 1 Yeear Capacity: 4-8 Cubic
High Light:

Manganese Steel TMR Mixer Machine

,

4 Cbm TMR Mixer Machine

,

4 Cbm TMR Feed Mixer

Mobile Dairy Farm Goat Sheep Cow Feed Mixing TMR Mixer Machine



Product introduction

TMR mixer moveable machine is Total Mixed Ration, It is a mixture of coarse grains, refined grains, trace elements and other additives, which can provide enough nutrition to meet the needs of cattle and sheep.TMR mixer feeding technology in the form a complete set of technical measures and the excellent performance of TMR machinery, on the basis of guarantee feed cows each a rations were pure crude proportion stable mixed diet, nutrition concentration consistent, is a big changes to the way the cow breeding.

Moveable 4 Cbm TMR Mixer Machine Manganese Steel 0

TMR mixer moveable features:

1. The machine is including machine frame, container to put feed, auger, actuator, hydraulic system, weighing system etc.

2. Cut and mix long grass into very short and thin one.

3. Electric face plate with weighing system: when add the first type feed, the electric face plate will show the weight; when add the second type, the plate will show the total weight both the first type and second type; weight is superimposed.

4. Data storage: the electric face plate can store 20 kinds of feed formula, each kind of feed formula can store 100 kinds of different weights of grass.

5. The transportation belt can be used to delivery feed, that’s more convenient for farmers.



Moveable 4 Cbm TMR Mixer Machine Manganese Steel 1



Parameters

Model 9JL-4type 9JL-6 type 9JL-8 type
Stirring Speed 16.5~24.8 rpm 16.5~24.8 rpm 17.5~22.8rpm
Mixing Chamber Volume 4 cube-meter 6 cube-meter 8 cube-meter
Structure Form Vertical Vertical Vertical
Supporting Power 15KW/ 40PS 15KW/ 40PS 22KW/ 40PS
Input/Output Speed 1470/540rpm 1470/540rpm 1470/540rpm
Blade Form Serrated sector Serrated sector Serrated sector
Blade quantity 4pieces 4pieces 6pieces
Size 3392x1938x2373mm 3900x1940x2290mm 4400x2360x2560mm
Weight 1500kg 1950kg 3050kg



Moveable 4 Cbm TMR Mixer Machine Manganese Steel 2



Application of TMR mixer

The product provides advanced feed mixing facilities for the large dairy farm with a considerable scale,dairy farming area, milk collecting station and pasture.

Moveable 4 Cbm TMR Mixer Machine Manganese Steel 3



Main parts of TMR mixer

hydraulic system, altruistic road, material box, weighing metering system ,transmission frame,packing auger,wheel

Moveable 4 Cbm TMR Mixer Machine Manganese Steel 4





Certification on TMR mixer

We have CE and ISO9001 certification for milking machine and related farm equipment.

Moveable 4 Cbm TMR Mixer Machine Manganese Steel 5

Moveable 4 Cbm TMR Mixer Machine Manganese Steel 6





Related product: vacuum pump milking machine

Moveable 4 Cbm TMR Mixer Machine Manganese Steel 7



center-channeled/fish-bone series milking hall

Moveable 4 Cbm TMR Mixer Machine Manganese Steel 8



Package and shipping:

1. Check the quality of product details
2.To begin packing, use bubble wrap
3. FCL packing
4. Other packaging requirements and customer confirmation

Moveable 4 Cbm TMR Mixer Machine Manganese Steel 9



Exhibition :

We attend exhibition every year in Russia, India, Germany, Indonesia etc.

Moveable 4 Cbm TMR Mixer Machine Manganese Steel 10





Introduction of company:

Shandong YueJiang Machinery Co.,Ltd.s production technology always stand in the forefront of the world. We adequately respect for the needs of customers and integrate the international resources. Our company main product the whole facilities and their accessories of 9J-I (II) type rotary vane vacuum pump milking trolley,9J-I type center-channeled/fish-bone series milking hall,9JL series full-time feed mixing machine,9L series refrigerated storage tank.,solid-liquid manure separator.Zibo YueJiang Machinery Co.,Ltd. is a professional company that commits ourself to manufacture dairy machinery and research,sale,install pasture supplies. Through the identification of National identification of agricultural machinery station,our products benefits from Chinese allowance.The products have passed GB/TI9001-2000/ISO9001:000 standard. Over the past decades, our factory has been adhering to producing first-class products and meeting the needs of our customers, achieved good social and economic benefits with our fine products and services, and won satisfaction in customers.

Moveable 4 Cbm TMR Mixer Machine Manganese Steel 11
