Herringbone Cow Milking Machine

Herringbone Cow Milking Machine
Herringbone Cow Milking Machine Herringbone Cow Milking Machine Herringbone Cow Milking Machine

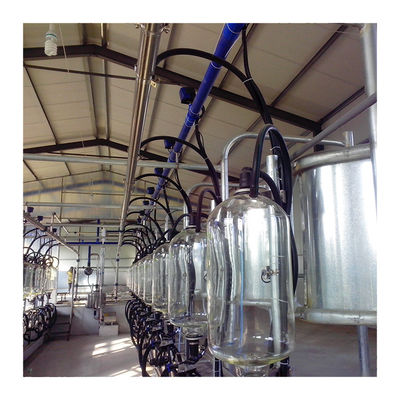

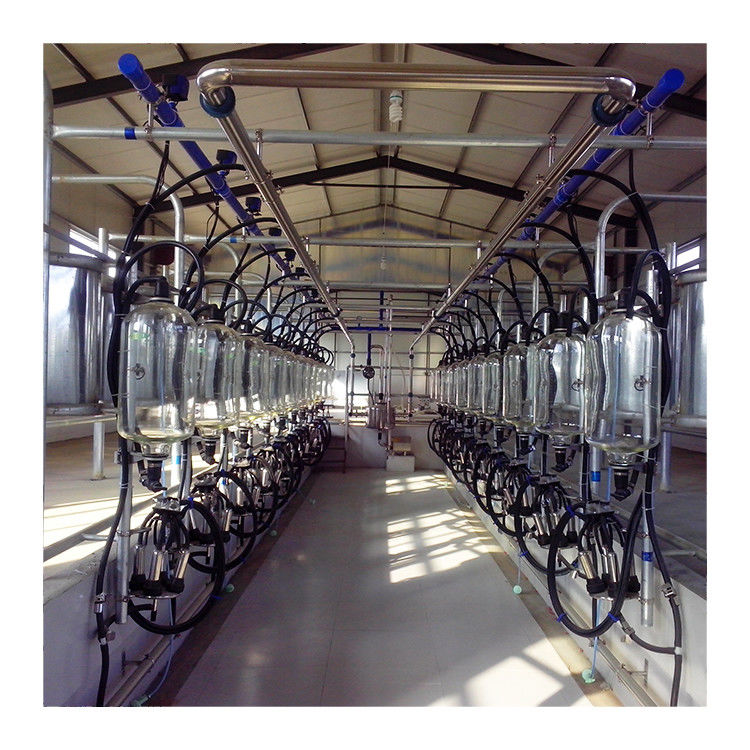

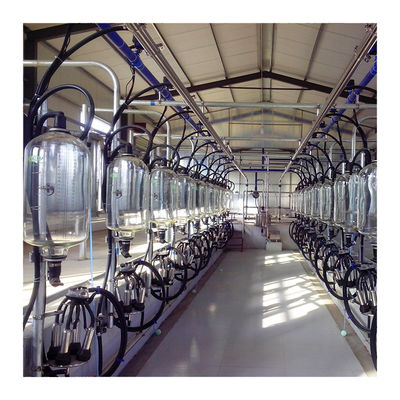

Large Image :  Herringbone Cow Milking Machine

Product Details:
Place of Origin: China
Brand Name: KLN
Certification: CE ISO9001
Model Number: 9JY-
Payment & Shipping Terms:
Minimum Order Quantity: 8set
Price: $1000-$2500 per set
Packaging Details: 20set per container
Delivery Time: 30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100set per month

Herringbone Cow Milking Machine

Product Name: Herringbone Milking Parlor Warranty: 1 Year
Condition: New Material: SS304
Layout: 2x4 To 2x32(Customized) Usage: Milking Cows\goats Etc
Type: Herringbone Milking Parlor Power(W): 11KW
High Light:

2 x 32 Cow Milking Machine


Herringbone Cow Milking Machine


2 x 32 Herringbone Milking Parlor

Automatic cows and goats dairy farm herringbone milking parlor


Herringbone milking parlor Description :

The milking parlour is the heart of the dairy farm. Whether the milking parlour works well is directly related to the yield and quality of milk. In the dairy farm, the milking parlour is the place where the cows flow most frequently. A cow is 2-3 times a day. The area to be squeezed in the milking parlour is the place with the highest density of cows, and the average area of cattle is only 1.6-2m2. Such frequent cattle flow and such a dense herd make the temperature and humidity of the milking parlour far higher than that of the ordinary cowshed, and the environmental control is more difficult than other cowsheds. Therefore, in the hot summer and cold winter, ventilation, cooling, and heating must be targeted to take some environmental control measures.


Herringbone milking parlor Parameter:


Model 9JY-I*12 9JY-I*14 9JY-I*16 9JY-I*18 9JY-2*8 9JY-2*12 9JY-2*16 9JY-2*20
Working Vacuum 50KPa 50KPa 50KPa 50KPa 50KPa 50KPa 50KPa 50KPa
Pulsation rate 60/40 60/40 60/40 60/40 60/40 60/40 60/40 60/40
Pulse frequency 60±3rpm 60±3rpm 60±3rpm 60±3rpm 60±3rpm 60±3rpm 60±3rpm 60±3rpm
Pump power 4KW 4KW 5.5KW 5.5KW 5.5KW 5.5KW 2*4KW 2*5.5KW
Vacuum pumping speed 1400L/min 1400L/min 2300L/min 2300L/min 2300L/min 2300L/min 2*1400L/min 2*2300L/min
Milking pump power 1.5kw 1.5kw 1.5kw 2.2KW 2.2KW 2.2KW 4KW 4KW
Milking pump flow 5T/h 5T/h 5T/h 8T/h 8T/h 8T/h 20T/h 20T/h

Herringbone milking parlor Features:

1,  The milk flows to the cooling tank directly through close milk pipe, avoiding to be contaminated.

2,  Automatically examine milking cows estrous, disease, milk production,etc.

3,  Economical, Operate easily, high efficiency

4.  We can expertly craft a milking parlor for your dairy.

Herringbone milking parlor Application :

1) Milking parlour is mainly used for adult cows to milking.

2) Suitable for large and medium sized farm or milk collection station to provide advanced milking equipment.

3) Milking parlour used for all kinds of animals, like milking cow, goat, sheep and donkey.


The milking parlor mainly includes cleaning system collection system and vacuum system.

Herringbone milking parlor Packing:

1.  Every order should use a WHOLE container to put goods, as the milking parlor have too many parts.

2.  A milk cooling tank is good for you to buy along with the milking parlor together in order to save installation fee for you.

3.  After you received all parts for milking parlor, pay attention to put all parts into one room to avoid missing.
