Product Details:
|
| Certification: | ISO,CE | Warranty: | 1 Year |
|---|---|---|---|
| Voltage: | 220V/380V | Dimension(l*w*h): | Customized,Standard Size |
| Application: | Food,juice,milk | Function: | Milk Cooling |
| High Light: | R404A Refrigerant Milk Cooling Tank,50Hz Milk Cooling Tank,50Hz Refrigerated Milk Tank |
||

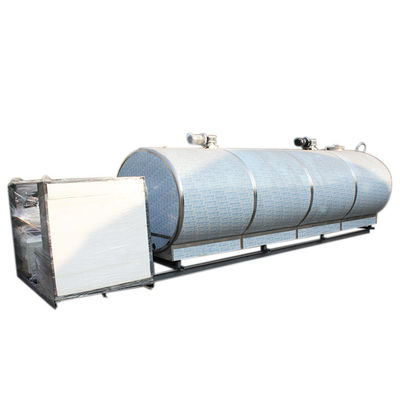

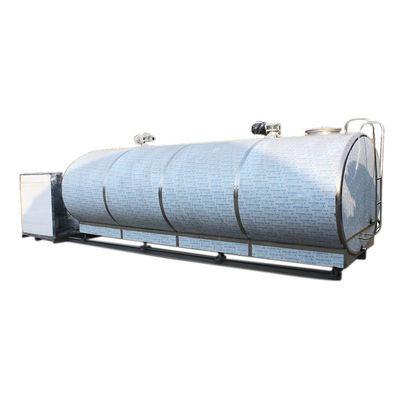

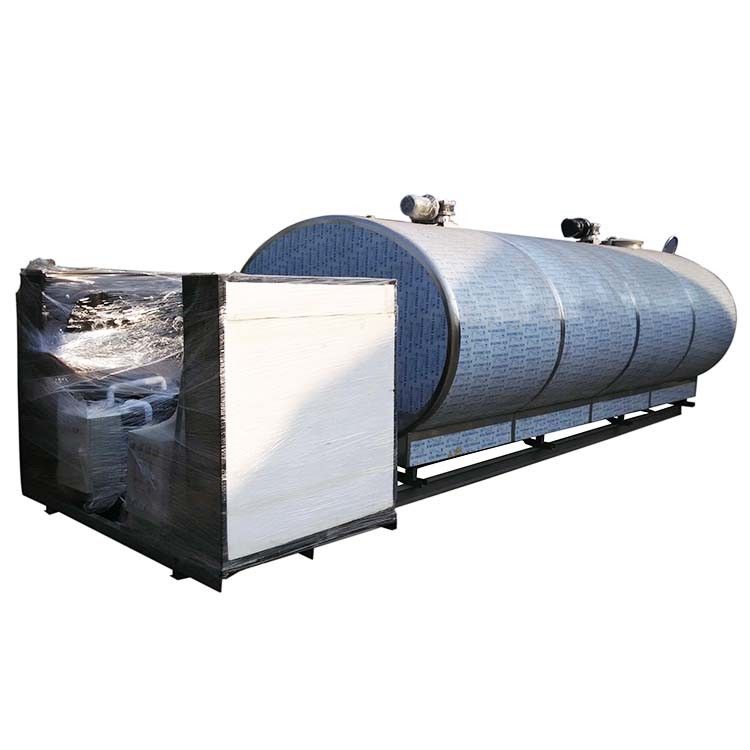

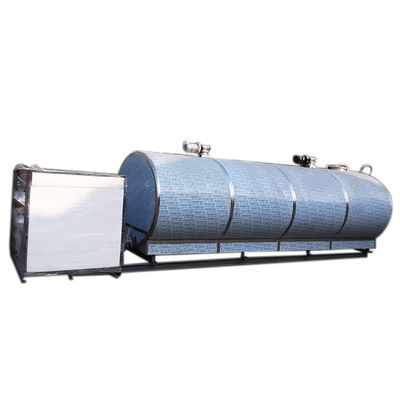

Refrigerated China Fresh Stainless Steel 1000 Liters Milk Cooling Tank
Product Description:directly supply horizontal milk bulk cooling tank is mainly used in cooling tostorage fresh milk or other liquid. It absorbs international advanced technology,adopts importing compress machine and safety and protection system, micro computer monitor,imported advanced technique and equipment such as polyurethane bubbling. So directly supply horizontal milk bulk cooling tank Is the ideal cooling and storage equipment for pasture, milk factory,food factory,and beverage factory and pharmacy industry.
Parameter:
| P.F(W) | REV | Matched power | Size(L*w*H) | Refrigerant | Power supply | |
| 500 | 5322 | 25r/m | 3KW | 900*900*1600 | R404A/R22 | 380V/3/50Hz |
| 1000 | 8842 | 35r/m | 4.5KW | 2200*1350*1550 | R404A/R22 | 380V/3/50Hz |
| 1500 | 11244 | 35r/m | 5KW | 2200*1200*1750 | R404A/R22 | 380V/3/50Hz |
| 2000 | 13221 | 35r/m | 6KW | 3300*1500*1700 | R404A/R22 | 380V/3/50Hz |
| 2500 | 16221 | 35r/m | 7KW | 3700*1450*1500 | R404A/R22 | 380V/3/50Hz |
| 3000 | 16221 | 35r/m | 7KW | 3950*1500*1700 | R404A/R22 | 380V/3/50Hz |
| 4000 | 32442 | 35r/m | 14KW | 3950*1900*1850 | R404A/R22 | 380V/3/50Hz |
| 5000 | 32442 | 35r/m | 14KW | 4200*2100*2000 | R404A/R22 | 380V/3/50Hz |
| 6000 | 40000 | 35r/m | 14K/W | 4200*2100*2200 | R404A/R22 | 380V/3/50Hz |
| 8000 | 41688 | 35r/m | 19K/W | 5200*2200*2150 | R404A/R22 | 380V/3/50Hz |
| 10000 | 51360 | 35r/m | 23K/W | 6000*2200*2150 | R404A/R22 | 380V/3/50Hz |
| 12000 | 51360 | 35r/m | 23K/W | 6000*2200*2300 | R404A/R22 | 380V/3/50Hz |
Feature:
1. It is a kind of stainless steel tank with beautiful shape, compact structure and high degree of automation.
2. It can not only save energy, but also keep the liquid cream for a long time in A state of low temperature preservation.
Application: Used as mixing tank, blending tank, stirred tank, agitating tank, etc. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Accessories: The 550-12000L stainless steel fresh milk cooling tank is mainly made of Compression Engine, Condenser, Evaporator, Water pump, Water tank, Fan and Motor.
Introduction of company:
Founded in 1995, we are one of the earliest manufacturers in China. Now our company with a group of experienced employees, we can provide you with consultation, project designing, manufacturing, installation, commissioning and training.As an eligible manufacturer with CE and ISO9001 certification, we have successfully exported our products to Southeast Asia and South America, Africa.,North America and South America
