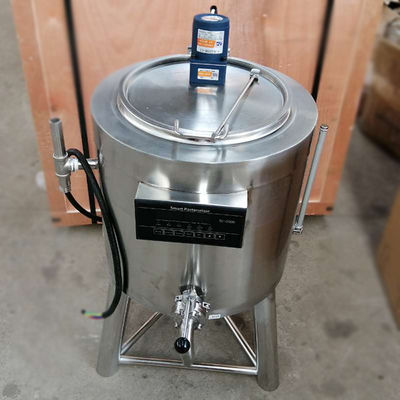

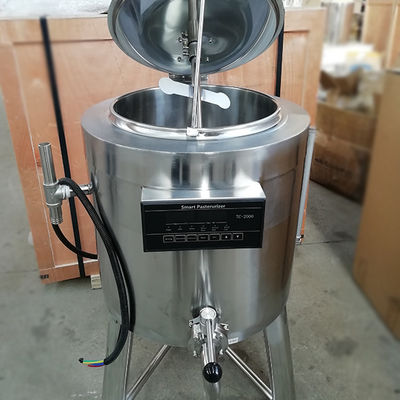

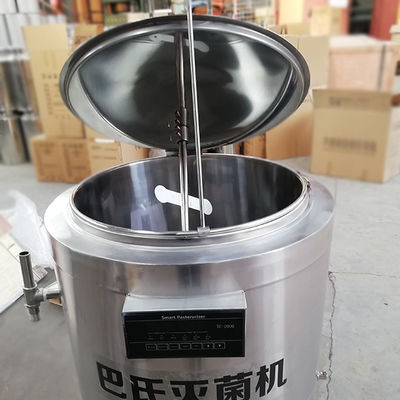

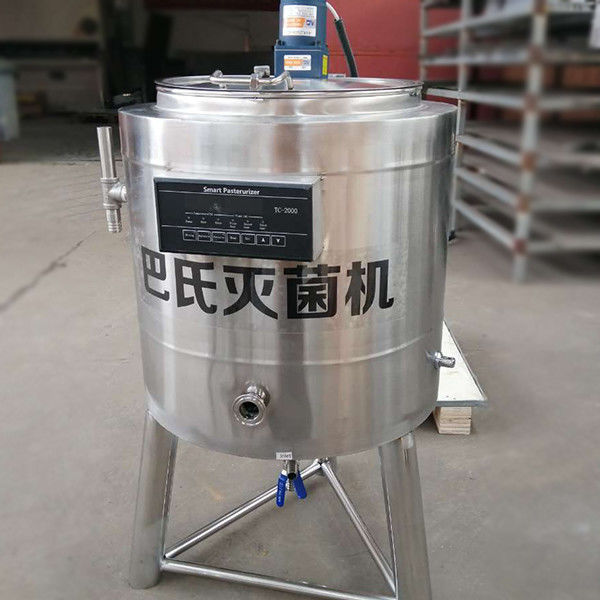

380V 3kw Milk Pasteurizer Machine

380V 3kw Milk Pasteurizer Machine
380V 3kw Milk Pasteurizer Machine 380V 3kw Milk Pasteurizer Machine 380V 3kw Milk Pasteurizer Machine 380V 3kw Milk Pasteurizer Machine

Large Image :  380V 3kw Milk Pasteurizer Machine

Product Details:
Place of Origin: China
Brand Name: KLN
Certification: CE/ISO
Model Number: BS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 150-3000/piece
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 300 sets/month

380V 3kw Milk Pasteurizer Machine

Description
Voltage: 220V/380V Warranty: 1 Year
Weight: Depends On Capacity After-sales Service Provided: Video Technical Support
Condition: New Power(w): According To Size
Material: 304 Stainless Steel Usage: Milk,Beer,Water Bath Juice Pasteurization Machine,juice And Milk
Application: Beverage Liquid Pasteurization,juice And Milk Name: Milk Pasteurizer
Function: Water Cooling Milk Pasteurizer
High Light:

380V Milk Pasteurizer Machine

,

3kw Milk Pasteurizer Machine

,

3kw Batch Pasteurizer Machine

     Stainless Steel Food Grade Juice Beer Liquid Milk Pasteurizer



Product Description

This equipment is widely used in liquid milk, juice, egg liquid, Chinese traditional medicine, biological pharmacy, bean products, condiments, such as the material of the original formula to determine screening and update, product taste, color evaluation/emulsifier and stabilizer used, new product research and development and batch pasteurized milk product production.

380V 3kw Milk Pasteurizer Machine 0

Parameter:

Model BS-100L BS-150L
Internal diameter 500mm 640mm
Output 100kg/time 150kg/time
Material SUS304 SUS304
Thickness 1.5 mm 1.5 mm
Height 1650mm 1650mm
Sterilization time 5-40min(adjustable) 5-40min(adjustable)
Sterilization temperature 50-99°C 50-99°C
Voltage 380V/50Hz 380V/50Hz
Rate of refrigeration compressor 3kw 3kw
Heat source electric heating electric heating
Heat up 25-35minute 25-35minute
Power 13kw 16kw
Contour dimension 1700x1000x1710mm 1700x1000x1710mm



380V 3kw Milk Pasteurizer Machine 1



Components:

Compressor, water tank, milk tank, circulating water pump, foundation, water cycle tank and milk tank. There are two layer of water cycle tank; one is up, the other one is down. Up layer cool water, down layer hot water, water cycle through by water pump come and out.

380V 3kw Milk Pasteurizer Machine 2



Sterilization principle of milk pasteurization machine:

Within a certain temperature range, the lower the temperature, the slower the bacteria multiply; the higher the temperature, the faster the reproduction. But if the temperature is too high, the bacteria will die. Different bacteria have different optimum growth temperatures and heat and cold resistance. Pasteurization is actually the use of pathogens that are not very heat-resistant. They are treated with appropriate temperature and holding time to kill them all. After pasteurization, a small portion of harmless or beneficial, heat-resistant bacteria or bacterial spores are retained. Pasteurized milk should be stored at a temperature of about 4 degrees and can only be stored for 3-10 days, up to 16 days.

380V 3kw Milk Pasteurizer Machine 3



Certification:

Our milking equipment and stainless steel products have obtained CE certification and ISO9001 certification.



380V 3kw Milk Pasteurizer Machine 4



380V 3kw Milk Pasteurizer Machine 5



Packaging and shipping:

Standard carton packaging for milk bucket and wooden case for milk pasteurizer.

380V 3kw Milk Pasteurizer Machine 6



Exhibition and international trade:

Our products have been exported to Malaysia, Indonesia, Mongolia, Jordan, South America, Libya, etc. Welcome friends from home and abroad to visit our company or negotiate with us. We will participate in Russian and Indian exhibitions every year.

380V 3kw Milk Pasteurizer Machine 7

Company information:

The company has been committed to the development and production of stainless steel products, the main products are pasteurized milk sterilization machine, stainless steel containers and stainless steel fittings in various fields. The Pap's fresh milk sterilizer produced by our company won the utility model patent certificate and design patent certificate in 2016. The company pays attention to creating high-quality stainless steel production enterprises, providing reliable service system and high-quality product experience for domestic and foreign users.



380V 3kw Milk Pasteurizer Machine 8
